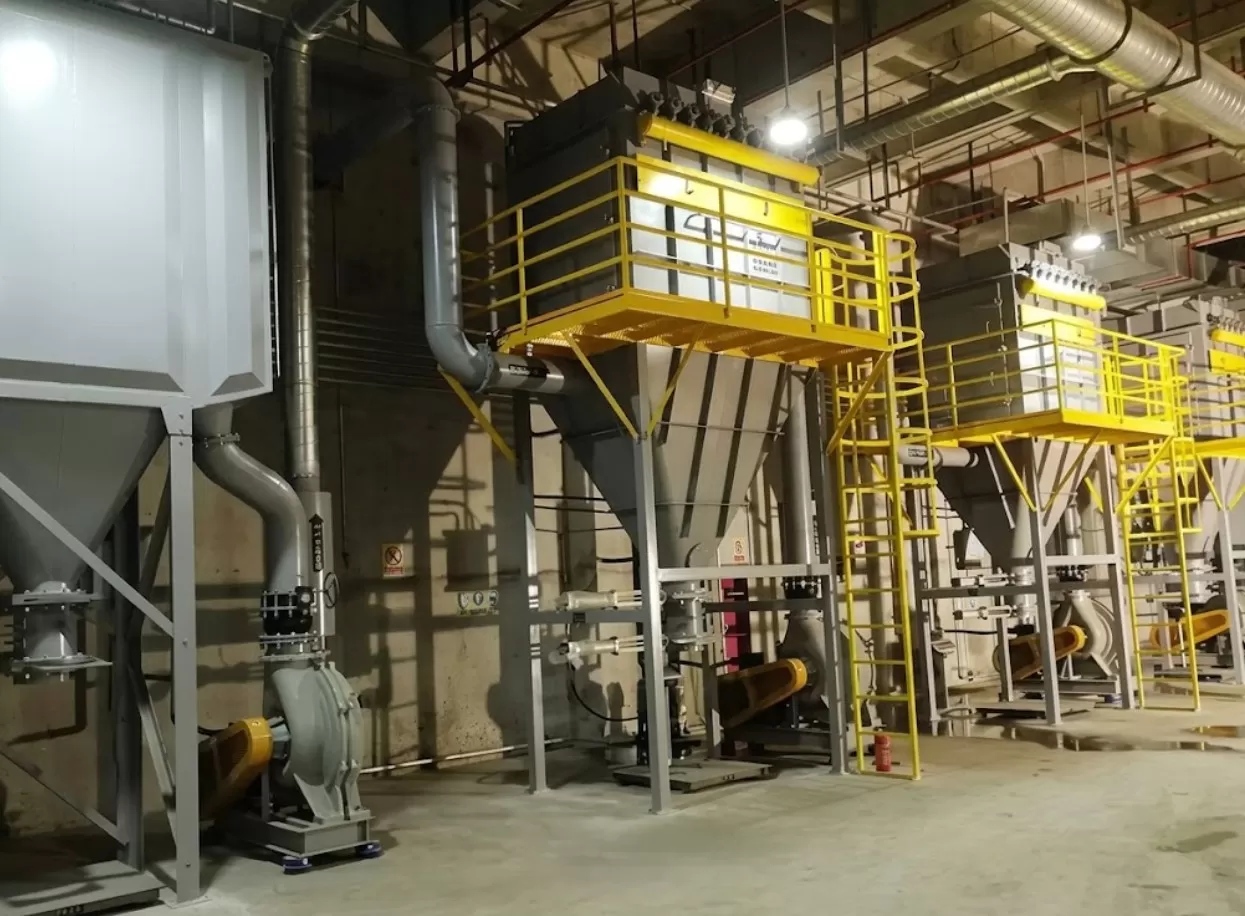

When it comes to operational significance, there is no other measurement in an industrial dust collection system that has more importance than a Baghouse Pressure Drop, which is the difference in pressure (ΔP) between the filter bags inside the baghouse system. In other words, it is the opposition to the flow of dirty, particle-laden air through the filter media. This one number measure, in inches of water gauge (in. w.g.) or Pascals (Pa), will provide the information operators need to determine if their system is operating efficiently, can be wasting energy, or is on the verge of failure.
The U.S. Environmental Protection Agency (EPA) finds that poorly maintained dust collection systems can be up to 30% below their rated efficiency, and can use 25-40% more fan energy (at ten of thousands of dollars a year for industrial facilities). Each year, Senotay's engineering team collects pressure drop data from hundreds of facilities, and the results are always clear – the biggest leverage any facility can take to ensure air quality compliance and operating budgets is pressure drop management.
The pressure drop is not a constant value. It is variable depending on various interacting variables. These root causes can be understood, and facility managers can act before efficiency deteriorates, by knowing what they are.
Baseline Resistance of the Filter Media: Each fabric filter will have an inherent base resistance. Typically 0.5-1.5 in. w.g. at rated airflow for woven fabrics and 1.0-2.5 in. w.g. at rated airflow for felt media.
Dust Cake Accumulation is the layer of settled particulates on the bag surface (dust cake) which can be from 1 to 5+ in. w.g., depending on particle size, density and loading rate (grain loading).
Air-to-Cloth Ratio (A/C Ratio): This ratio represents the force with which air is pushed through the media, and is expressed in ft/min (feet per minute). For most applications, industry practice suggests 3:1 to 6:1. Higher ratios will lead to a faster cake formation and a faster increase of ΔP.
Cleaning Cycle Effectiveness: There is an optimum frequency window for cleaning cycle effectiveness for all three; pulse-jet, shaker and reverse-air cleaning systems. Buildup of cake can occur from under-cleaning, and the over-cleaning of the bag fibers is a fatigue which may occur prematurely.
Bag Blinding: Fine particles (particularly hygroscopic or sticky dusts) permanently embedded in the weave of the filter. Blinded bags cannot be cleaned — ΔP will forever increase until they are replaced.
Temperature and Humidity Fluctuations: Process gases with temperatures over 250°F and humidity over 80% can lead to condensation, caking and permanent blinding within 48-72 hours of exposure.
The table below, derived from raw ΔP measurements taken in the field by Senotay in various industrial sectors such as cement, woodworking, pharmaceuticals and metalworking, is used to convert the raw data into discrete system status categories.
Table 1: Baghouse Pressure Drop ranges, corresponding filtration efficiency levels, and recommended actions (Source: Senotay Field Engineering Data, 2023–2024)
A medium sized wood products manufacturer (85,000 board-feet/day) presents a good example. A prolonged (10 day) ΔP reading of 7.2 in. w.g. was noted by Senotay's monitoring systems, and inspection showed 34 of 120 filter bags to be blinding with fine MDF dust. The system was returned to 3.1 in w.g after the replacement, particulate emissions were reduced by 61%, and a regulatory compliance notice was avoided.
There is a near linear relationship between the pressure drop and energy consumption in fan driven systems. This is based on fluid dynamic Affinity Laws: Fan power is proportional to airflow velocity cubed. As ΔP increases, the fan's current consumption to provide the same airflow increases — and the extra energy expenditure adds up hourly.
Table 2: Relationship between ΔP levels, energy consumption, and estimated annual operating cost increase for a 10,000 CFM system running 6,000 hours/year (Source: Senotay Energy Audit Reports, 2024)
In addition to fan energy, higher pressure drop has a domino effect on other minor, but frequently overlooked costs:
Overuse of pulse-jet systems at operating pressures above 6 in. w.g. for extended periods of time causes mechanical fatigue in the bags, reducing the expected life from 2-4 years to less than 14 months, which is a cost multiplier of 2.5x-3.5x.
The cost of unplanned downtime is $8,500-$22,000 on average per incident on an industrial facility when a ΔP spike happens in a reactive manner, causing an emergency shutdown, lost production, emergency labour and expedited parts sourcing (Senotay Service Data, 2024).
Opacity violations are issued by U.S. EPA and state regulatory agencies when the filtration efficiency falls below the required limits. Under Clean Air Act Section 113, fines are $1200–$37500 per day of noncompliance.
A reliable, real-time ΔP measurement is the basis for an effective baghouse management approach. Senotay's integrated IoT monitoring platforms have revolutionized the way filters are managed in facilities, replacing the traditional analog Magnehelic gauges.
Manual Monitoring (Legacy Approach)
The traditional installations use Magnehelic or Photohelic type differential pressure gauges which are mounted on the baghouse housing. Manual readings are done by technicians every 4-8 hours. This is an inexpensive solution (gauges range from $50 to $200), but it doesn't capture transients and offers no trend analysis or alert functionality.
Automated Digital Monitoring (Current Best Practice)
Modern installations use digital differential pressure transmitters with 4–20 mA or Modbus output which are connected to SCADA or BMS. Alert thresholds can be set as a deviation from the setpoint of ±0.5 in. w.g. which can initiate auto cleaning cycles or operator alerts. For example, Senotay's MonitorCore platform records ΔP at one-minute intervals, creates 30-day trend reports and alerts to unusual degradation patterns through statistical process control (SPC) algorithms.
In Senotay's client benchmarking survey for 2024, we surveyed 147 facilities and found that those that moved from manual to automated ΔP monitoring experienced an average of 22% fewer unplanned maintenance events and experienced an average of 17% longer bag service life.
A multi-faceted strategy involving equipment selection, maintenance scheduling and process control is necessary to reduce and stabilize ΔP. According to Senotay's engineering framework, there are four core levers:
Use the smallest A/C ratio at Design Stage: For fine dusts (< 10 microns), the air-to-cloth ratio should be 4:1 or less. The ratio is good at 6:1 for coarse dust (larger than 50 micrometers). Chronic high ΔP is caused by over-specification of air volume, most commonly.
Optimize Parameters of Pulse Jet Cleaning: Pulse pressure (usually 90-100 PSI), Pulse duration (100-150ms), and Pulse interval (15-60s) should be optimized for the specific dust characteristics. By optimizing parameters (without adding any capital cost) with Senotay's pulse optimization service, ΔP reductions have been proven as low as 1.2 to 2.4 in. w.g.
Choose Correct Filter Media: PTFE-laminated membranes are able to filter particles as small as sub-micron at lower ΔP than depth-loading felts. Hydrophobic finishes are used to prevent moisture from entering and blinding sticky or hygroscopic dusts. Senotay's media selection tool cross references 340+ dust types with 60+ media variants to suggest the lowest-ΔP for each application.
Use Cumulative ΔP Trend Data for Predictive Replacement Scheduling (as opposed to replacement on a predetermined calendar). With application, bag life varies from 11 months to 6 years, with Senotay's own analytics indicating that bag spend can be reduced by 19–31% on average when bag replacement is based on analytics, as it is proven to reduce premature and overdue replacements.
There are wide variations in the allowable pressure drop for different industries, depending on the type of dust, the temperature and the regulations. Benchmarks from the cross-industry monitoring database of Senotay are reproduced below:
Cement Manufacturing: The typical ΔP of 4–6 in. w.g. is achieved in this application because of the high grain loading (> 5 gr/ACFM) involved. The average life in the bag is 18–24 months.
Pharmaceutical / Fine Chemical: The ΔP restrictions are so tight that they must be within ±0.25 in. w.g. of the setpoint. The operation of HEPA-grade bags is at 2–3 in. w.g., using PTFE membranes.
Fine sawdust can cause aggressive blinding in Woodworking / MDF Production with ΔP increasing from 3 to 7 inches of w.g. in 72 hours for a process change if cleaning cycles are not changed.
When particles are < 1 micron, as in the case of metal grinding / welding, the use of high efficiency PTFE media is required and an adequate A/C ratio will produce a ΔP of 2.5-4 in. w.g.
Food Processing: The food dust needs to be hygroscopic, and moisture blinding is common during humid seasons, so ΔP monitoring is recommended to be done at every 15 minutes.
Senotay is an industrial filter engineering company specialized in baghouse optimization based on data. Whether it's a beginning system audit or real-time digital monitoring and media selection, Senotay offers end-to-end support to take the ΔP data and turn it into measurable operational improvements.
Senotay's primary services that impact pressure drop management are:
Full Baghouse Audits: Measurement of actual ΔP, A/C ratio, grain loading and cleaning effectiveness – all measurements based on industry standards and regulatory limits.
MonitorCore IoT Platform: Continuous ΔP data logging, automated alerts, trend visualization and predictive analytics on web dashboard and mobile app.
Filter Media Engineering: Application-specific bag selection and testing (including ΔP performance validation prior to installation in full-scale application).
Pulse Optimization Service: Empirical cleaning parameter tuning to minimize ΔP with maximum bag life, (usually completed during one 8-hour site visit).
Documentation of ΔP performance history for EPA Method 5 and opacity compliance reporting.
Senotay's clients have seen an average total annual dust collection operating cost reduction of 23% within the first 12 months of engaging services, some high intensity applications (e.g. cement, woodworking) have seen reductions over 35%.
▪ Industrial Baghouse Series
▪ LDMC baghouse dust collector | PPC baghouse dust collector | DMC Pulse Jet Baghouse Dust Collector | Baghouse Dust Collector
▪ Electrostatic & Gas Treatment
▪ Horizontal electrostatic precipitator | Wet electrostatic precipitator | Electrostatic Dust Collector | PP Spray Tower | Catalytic Combustion Dust Collector
▪ Cyclone Dust Separators
▪ Single-Cylinder Cyclone Dust Collector | Combined Cyclone Dust Collector | Ceramic Multi-Tube Cyclone Dust Collector
▪ Cartridge & Station Extraction
▪ Cartridge Dust Collector | Modular Dust Collector | Mobile dust collector | Welding Fume Purifier | Grinding table dust collector
Q1: What is a normal baghouse pressure drop?
The optimum range of normal operation is between 2 and 4 inches of water gauge (in. w.g.) for most industrial applications. If a reading is below 2" w.g. it suggests that either the bags are under-loaded or damaged and that bypass is occurring. Readings above 6 in.w.g. indicate that there are problems or blinding which will need attention – urgently.
Q2: How often should I check my baghouse ΔP?
With manual gauges, readings are recommended twice a day at a minimum. Automated continuous monitoring (logging every 1 - 5 minutes) is the best practice and approach used by Senotay's MonitorCore platform for systems that have high process variability or tight emissions compliance requirements.
Q3: Why does my baghouse pressure drop keep rising even after cleaning?
If ΔP continues to rise following the cleaning process, then it is usually a sign of bag blinding (embedding of fine particles into the filter weave structure) having occurred. This is especially true when using sub-5 micron dusts, hygroscopic products, or where operating temperatures swing above or below the dew point. Generally, bag replacement is needed, as well as a root cause analysis of moisture, A/C ratio or media selection.
Q4: How does pressure drop affect emissions compliance?
The emission of particles is generally higher when the pressure difference (ΔP) is higher than the set point (design) due to the blinding or lower than the set point (design) due to the failure of the bag, which may exceed the opacity or mass emission limits. Continuous ΔP monitoring has become a more and more accepted alternative to compliance by regulatory agencies. Senotay offers packages of documentation, linking directly EPA performance standards to ΔP measurements.
Q5: Can I reduce pressure drop without replacing bags?
Yes — in many instances. Senotay's pulse optimization service is able to reduce ΔP by 1.2-2.4 in. w.g. solely by adjusting the cleaning parameters. Other "no-capital" solutions are decreasing the inlet air temperature, upstream process moisture sources, and recalibrating the cleaning cycle timer to match actual dust loading patterns.
Q6: What is the relationship between ΔP and filter bag lifespan?
Increased ΔP leads to increased mechanical stress on bags during each cleaning pulse. In pulse-jet systems, industry data indicates fiber fatigue is 2-3 times greater for bags that are operated at a pressure greater than 6 in. w.g. as compared to bags operated in the 2-4 in. w.g. range. Therefore, appropriate management of the ΔP is the most effective single step to increase the life of the bags and to decrease the replacement expenses.
