Portable & Centralized Extraction for Heavy Industrial Fume Control
The HYC Series Welding Fume Purifier is a high-efficiency mobile air purification system engineered to capture, purify, and eliminate toxic welding smoke, metal grinding dust, and cutting fumes directly at the source. Designed for MIG/MAG, TIG, Arc, and Laser welding applications, it combines multi-stage HEPA filtration with flexible extraction arms to keep shop floor air clean, safe, and fully compliant with global OSHA, NIOSH, ISO 9001, and CE occupational health standards.
Core Operational Advantages
High-Efficiency Multi-Stage Capture: Advanced nanofiber cartridges and H13 HEPA filters trap fine particulate matter down to 0.3 μm at up to 99.97% efficiency, keeping discharge emissions under 2 mg/m³.
360-Degree Source Capture: Flexible 1.5–3.0 meter positional extraction arms with smooth internal airflow geometry capture toxic fumes before they reach the operator's breathing zone.powder-coated Q235 carbon steel housing and heavy-duty PU swivel casters for effortless mobility across busy factory floors.
Low Noise & Low Energy: Aerodynamically optimized motor-fan assemblies operate at a quiet 65–78 dB(A) while consuming minimal electrical power (1.1–7.5 kW).
Featured Model Variants
HYC-Mobility | Portable Point-of-Use Extraction
Airflow: 1,500 m³/h | Motor: 1.1 kW (220V) | Capture Efficiency: > 95%
Best for light welding, maintenance bays, and single-operator mobile touch-ups.
HYC-3000 Pro | Heavy Workshop Single Arm
Airflow: 3,000–4,000 m³/h | Motor: 3.0 kW (380V) | Capture Efficiency: > 95%
Designed for continuous MIG/MAG production lines and heavy fabrication stations.
HYC-IndustrialPro | Centralized Multi-Station Purifier
Airflow: 7,000 m³/h | Motor: 7.5 kW (380V) | Capture Efficiency: 99.97%
Heavy-duty centralized extraction for automated robotic welding cells and plasma cutting units.
Why Choose a Welding Fume Purifier?
Welding processes emit harmful gases and micro-particles, including hexavalent chromium, manganese, and lead oxides. Continuous exposure to these emissions causes respiratory diseases, lowers productivity, and damages equipment.
Choosing a Senotay Welding Fume Purifier offers multiple benefits:
Health & Safety: Removes 99.97% of airborne contaminants as small as 0.3 microns.
Regulatory Compliance: Meets international ISO 9001 and CE standards.
Operational Efficiency: Keeps welding sites cleaner, reducing maintenance and downtime.
Cost Effectiveness: Long filter life (5–10 years) and reduced energy consumption save operational costs.
Environmental Protection: Contributes to cleaner air and a sustainable workplace.
Why Leading Plants Choose SENOTAY Welding Fume Purifier
Factory-Direct Pricing. Certified Quality. Dedicated Support.
Best Price Guarantee
Certified & Compliant
Fast, Reliable Delivery
Welding Fume Purifier Types Comparison
Model Type | Air Volume (m³/h) | Motor Power (KW) | Filter Efficiency | Voltage | Dimensions (mm) | Weight (Kg) |
HYC-1500 | 1,000–1,500 | 1.1 | ＞95% | 220V/50Hz | 500×500×750 | 40 |
HYC-3000 | 2,000–3,000 | 2.2 | ＞95% | 380V/50Hz | 500×700×1150 | 60 |
HYC-3000 Pro | 3,000–4,000 | 3.0 | ＞95% | 380V/50Hz | 750×800×1200 | 75 |
HYC-5000 | 4,000–5,000 | 4.0 | 99.97% | 380V/50Hz | 900×900×1250 | 85 |
HYC-6000 | 5,000–6,000 | 5.5 | 99.97% | 380V/50Hz | 1000×950×1300 | 95 |
HYC-7000 | 6,000–7,000 | 7.5 | 99.97% | 380V/50Hz | 1100×1000×1350 | 110 |
HYC-Dual1000 | 1,000×2 | 2.2 | ＞95% | 380V/50Hz | 700×900×1200 | 70 |
HYC-Dual3000 | 3,000×2 | 5.0 | 99.97% | 380V/50Hz | 1000×1100×1350 | 130 |
HYC-Mobility | 1,500 | 1.1 | ＞95% | 220V/50Hz | Portable Design | 35 |
HYC-IndustrialPro | 7,000 | 7.5 | 99.97% | 380V/50Hz | 1200×1100×1400 | 150 |
Welding Fume Purifier — Technical Specification Table
Physical Dimensions | Performance Ratings | Material & Construction | Operational Data | Certifications & Lifecycle |
Unit Length: 650–1,200 mm | 1,000–3,600 m³/h | Filter Media: Nano-fiber Cartridge / HEPA H13 | 65–78 dB(A) | 6–12 months |
Unit Width: 550–900 mm | −1,200 to −2,500 Pa | Pre-filter Material: Nonwoven Polyester | 20–75 °C | 8–12 years |
Unit Height: 900–1,800 mm | 99.9% @ ≥ 0.3 μm | HEPA Frame Material: Galvanized Steel / ABS | 80 °C | Up to 400,000 |
Arm Diameter: Ø140–Ø180 mm | 70–85% (with activated carbon) | Cabinet Material: Q235 / SS304 | 1,400–3,000 rpm | ISO 9001 / CE |
Arm Length: 1.5–3.0 m | 18–25 m/s | Seal Material: EPDM / Silicone | 0.75–3.0 kW | OSHA / NIOSH |
Inlet Flange Size: DN150–DN250 | 1,500–2,800 Pa | Cabinet Thickness: 1.5–3.0 mm | 220V/380V, 50–60 Hz | IP54 |
Bolt Circle Diameter (BCD): 200–350 mm | 8–20 kg | Surface Coating: Epoxy Powder Coating | 85–260 kg | 600–1,200 hours |
Unit Footprint Area: 0.45–1.2 m² | < 2 mg/m³ | Caster Type: Heavy-duty PU Wheels | 30–70 Nm | > 1,000,000 |
Product Description, Material Properties & Standard Physical/Mechanical Characteristics
Senotay designs durable and reliable welding fume purifiers manufactured using high-quality industrial materials.
Material Properties
Carbon Steel Body (Q235/Q345) – durable and impact-resistant.
Stainless Steel Options (304/316) – corrosion-resistant for special applications.
Powder-Coated Surface – enhances corrosion and wear resistance.
High-Efficiency HEPA / Cartridge Filters – 99.9% capture efficiency.
Standard Physical & Mechanical Characteristics
Property | Specification | Description |
Filtration Efficiency | ≥99.9% | HEPA/cartridge filter efficiency. |
.Motor Power | 1.5–7.5 kW | Depends on model. |
Airflow | 1,200–4,500 m³/h | Strong extraction performance. |
Noise Level | ≤ 72 dB | Optimized for quieter operation. |
.Structural Strength | High | Rigid steel frame construction. |
Surface Treatment | Powder coating | Anti-rust & long service life. |
Features of WFP.
99.97% filtration efficiency for particles ≥0.3μm.
Equipped with 2.2KW – 7.5KW motors delivering up to 7,000 m³/h airflow.
Low noise and compact design for mobility.
Automatic pulse dust cleaning for maintenance-free operation.
Flame-retardant filter materials ensure maximum safety.
Universal suction arm with 360° flexibility.
Durable steel enclosure built for industrial conditions.

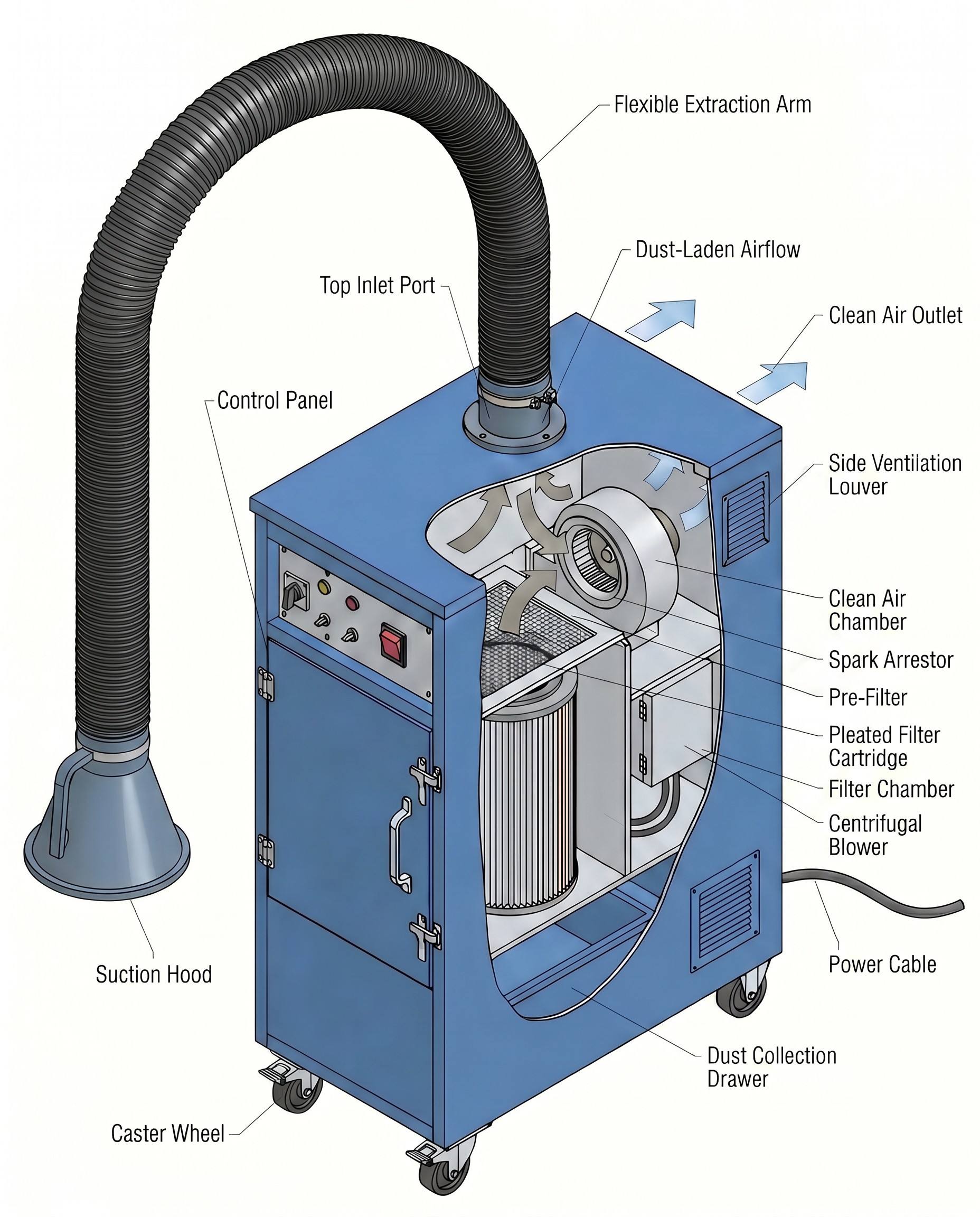

Core Components
Component | Function & Benefit |
Pleated HEPA Filter Cartridges | Ultra-fine filtration with 99.97% efficiency, fire-resistant and long-lasting. |
Pulse Jet Cleaning System | Automates filter cleaning without interrupting operation. |
Flexible Extraction Arm | 360° adjustable arm ensures precise source capture. |
Industrial Centrifugal Fan | Provides strong suction up to 19,000 Pa. |
Flame Retardant Pre-Filter Net | Prevents sparks and coarse dust from entering. |
Mobility Package (Casters) | Easy movement and station locking. |
Steel Enclosure | Protects internal components and ensures long operational life. |
Technical Advantages in Manufacturing – Senotay Expertise
At Hebei Outai Environmental Protection Equipment Co., Ltd., technical excellence drives every Welding Fume Purifier:
Two decades of engineering experience in air filtration and dust removal systems.
Advanced CNC manufacturing and laser cutting technology for precision assembly.
Smart control systems reduce compressed air usage by 30%.
ISO 9001-certified production ensures consistent quality.
Customized OEM & ODM services for international clients.
Our technical innovations guarantee durable construction, energy efficiency, and stable performance in all industrial environments.
Explore More Air Pollution Control Equipment
▪ Industrial Baghouse Series
▪ LDMC baghouse dust collector | PPC baghouse dust collector | DMC Pulse Jet Baghouse Dust Collector | Baghouse Dust Collector
▪ Electrostatic & Gas Treatment
▪ Horizontal electrostatic precipitator | Wet electrostatic precipitator | Electrostatic Dust Collector | PP Spray Tower | Catalytic Combustion Dust Collector
▪ Cyclone Dust Separators
▪ Single-Cylinder Cyclone Dust Collector | Combined Cyclone Dust Collector | Ceramic Multi-Tube Cyclone Dust Collector
▪ Cartridge & Station Extraction
▪ Cartridge Dust Collector | Modular Dust Collector | Mobile dust collector | Welding Fume Purifier | Grinding table dust collector
FAQs
Q1: How often should filters be replaced?
answers: Filters typically last 5–10 years depending on usage. The pulse cleaning system extends filter life significantly.
Q2: Is the portable?
answers: Yes, Senotay offers portable welding fume extractors equipped with wheels and flexible arms.
Q3: Can it handle multiple workstations?
answers: Yes, dual-arm and centralized systems are available for large-scale industrial setups.
Q4: Does it remove toxic gases as well as smoke?
answers: Yes, our multi-stage filters capture gases, fumes, and particulates effectively.
Q5: Why choose Senotay as your welding fume purifier manufacturer in China?
answers: With over 20 years of industry expertise, Senotay combines innovative design, international certifications, and unrivaled durability—making it a trusted welding fume purifier manufacturer in China.
