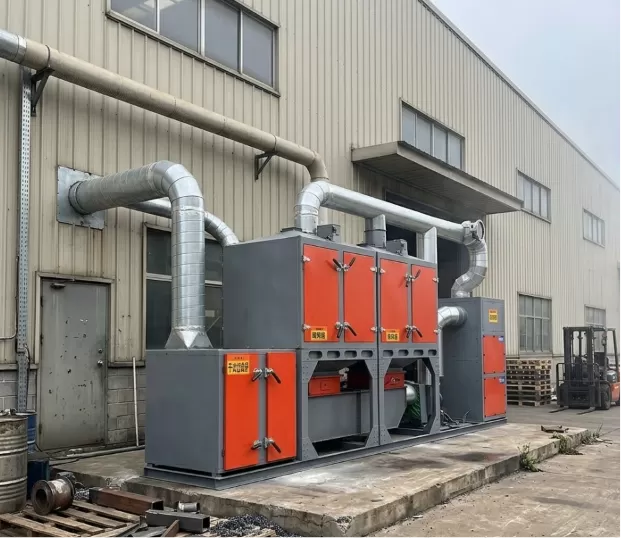

Dust Collectors and Filtration Systems can never be optional in industrial settings since they are mission-critical. Of all performance measures, the pressure drop is the only one that can be considered as the most eloquent indicator of the efficiency of the functioning baghouse. We are in the field of daily analysis of real-world filtration data at Senotay, and pressure drop is regularly identified as the difference between high-performing filtration systems and those that fail.
The difference in air pressure between the inlet and outlet of a filter system is termed as pressure drop ( ΔP ). It is expressed in inches of column of water (in). WC) or Pascals (Pa). The normal operating range of a healthy baghouse is 3-6 in. WC (746–1,491 Pa). Any deviation to the left or right indicates a working issue that should be taken care of.
Darcys Law controls pressure drop across a baghouse filter which is adjusted by practical parameters such as dust cake thickness, filter media porosity, airflow velocity and temperature. The key to dust collector efficiency management is to understand these drivers.
Key Variables That Influence Pressure Drop
Filter Media Resistance: Filtered polyester bags of new felted polyester have a baseline resistance of 0.5-1.5 in. At design airflow WC.
Dust Cake Accumulation: A well-conditioned dust cake may actually enhance the efficiency of filtration - but above 0.5-1.0 in. WC is resistance added, it is a liability.
Air-to-Cloth Ratio (A/C): The majority of pulse-jet baghouses are designed at 4-6 ft/min. Beyond that, the ΔP starts to skyrocket.
Temperature and Humidity: Hot, damp gases enhance filter blinding a 10C rise within the dew point might include 0.3-0.8 in. WC of resistance.
Cleaning Frequency: Undercleaned bags lead to ΔP spikes, whereas overcleaning reduces bag life by 15- 25%.
Table 1: Pressure Drop Benchmarks vs. System Health (Senotay Data Reference)
The field service data presented by Senotay (2022-2024) based on over 340 baghouse installations in cement, woodworking, pharmaceutical and metalworking industries, presents some patterns that cannot be overlooked.
Case Study 1- Cement Plant, Midwest USA.
A 12-compartment reverse-air baghouse was treating 180,000 ACFM in a cement grinding plant. Operators observed slowdown in production but blamed it on upstream equipment. The diagnostic audit conducted by Senotay showed that:
Mean ΔP had increased to 4.2 in. WC to 9.7 in. WC over 6 months
Fan motor amperage added 22 percent, costing the company an additional $38,000/year in energy expenses.
Bag cleaning pulses not firing off correctly - 31 out of 100 solenoids had broken without any noise.
Following a repair, ΔP went to 4.8 in. WC, and a saving of $34,500/year.
Case Study 2 - Woodworking plant, Pacific Northwest.
A medium size manufacturer of a cabinet was operating a cartridge shape dust collector that had a design of 5.0 in ΔP. WC. In a Senotay performance review, it was discovered that:
Actual ΔP had evened out at 2.1 in. WC - dangerously low, perforation of bag.
Downstream emissions of particulate matter (PM) was 40% above local EPA standards.
Three of the twenty filter bags were found to have tears, permitting unfiltered air to pass.
Rechanging the broken bags and recalibration of the system took ΔP to 4.6 in. WC and emissions to full compliance.
Pressure drop is not a single figure. Its engineers have adopted it as a multi-variable filtration performance scorecard by Senotay. The below measures are in synergy with ΔP to create an entire picture of baghouse health:
Emission opacities: Most industrial permits should have an emission opacities of less than 10%. ΔP less than 2 in. WC is commonly associated with a higher than 20-35-percent of opacities.
Can velocity: Ideal range: 150-250 ft/min. Large can velocity re-entrains settled dust, so it artificially inflates ΔP indications.
Pulse pressure: Pulse pressure should be kept at 90-100 psi to clean effectively. 1.5-3.0 in of ΔP is added by low pulse pressure. WC over time.
Filter age and loading: Older than 3–5 years are possible: Bags with low porosity due to age, and add 0.5-2.0 in. WC of uncleaned resistance.
Table 2: Industry-Specific Pressure Drop Operating Ranges
Senotay has created a proprietary filtration performance framework integrating continuous monitoring of ΔP with predictive maintenance signals. The idea is not to respond to failure but to act in the optimum ΔP band on a regular basis - consistently.
Senotay Pressure Drop Optimization Protocol.
Step 1 -Set Baseline: Document ΔP measurements at 15-minute intervals during the initial 30 days of operation with new filter media to determine an actual baseline.
Step 2: Threshold Alerts: Program SCADA or PLC systems to make 110 percent and 130 percent of the set baseline ΔP alerts.
Step 3 — Correlate with Cleaning Data: Plotting cleaning cycle frequency and pulse data versus ΔP trends. An increasing ΔP which fails to decrease upon cleaning is a sign of blinded media.
Step 4 - Scheduled Physical Inspection: Every 2,000 operating hours, a visual and mechanical check should be done in accordance with the ΔP trend data.
Step 5 - Data-Driven Media Replacement: Replace bags when the change in baseline ΔP is 30-40 percent of original commissioning values, and does not wait until visibly unstable.
The economic impacts of untreated pressure drop are quantifiable and considerable. According to the service records of Senotay in 340+ installations:
The systems are above 8 in. WC use an average of 18-28 percent more fan power than well tuned systems.
Unplanned baghouse closures due to high pressure resulted in lost industrial production and emergency repairs to the extent of between $15,000 and $120,000 per occurrence.
Facilities that have constant ΔP measurements save 67% of unplanned downtime compared to those that use periodic checks manually.
Proactive pressure drop management represents an average of 8-14 months of life of filter bags, which will cost a deferred capital expenditure of $8,000-60,000 per system.
To a plant engineer, maintenance manager or an environmental compliance officer, pressure drop is not a gauge value but a language. That language is translated by Senotay into actionable intelligence, to keep industrial processes at optimum dust collector efficiency, guarantee regulatory compliance, and safeguard equipment and individuals.
Be it a new installation, a struggling system, or planning a media replacement plan, the information behind pressure drop is where all optimization journeys start, and Senotay is the partner you trust to help you along the way.
