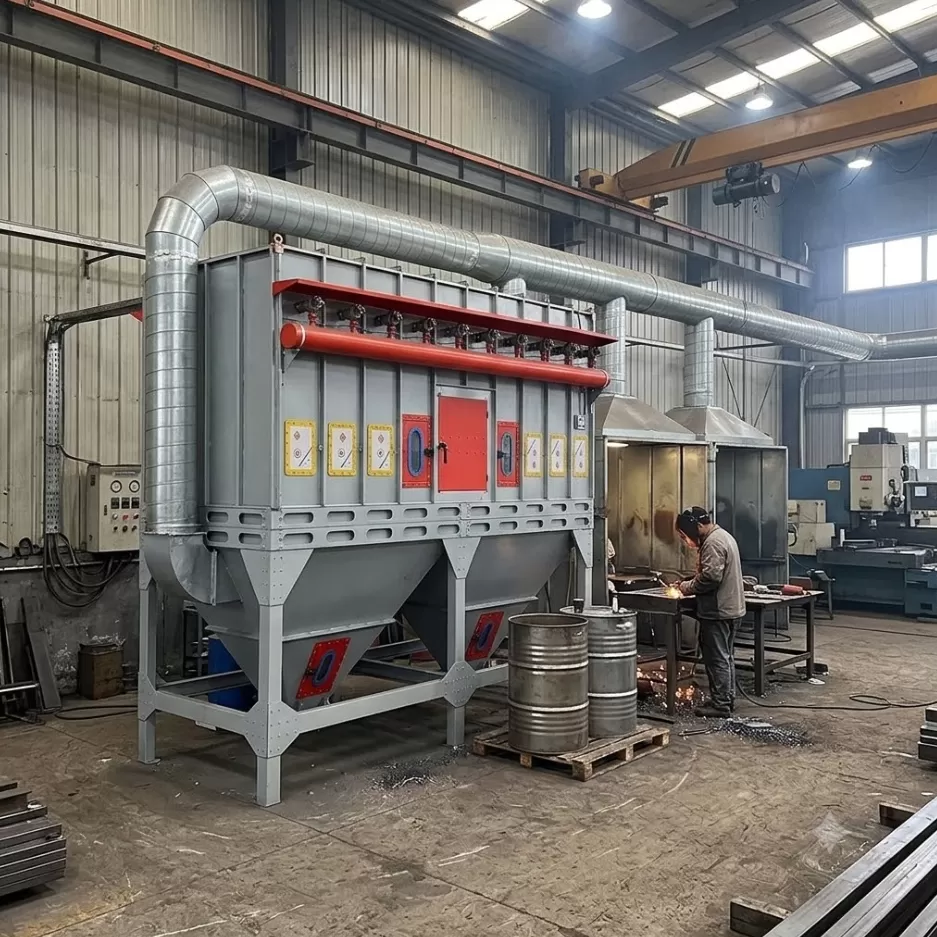

Getting CFM wrong is the single most expensive mistake in dust collection system design. Too low, and airborne particles escape into the workspace — creating OSHA violations, health hazards, and equipment wear. Too high, and you're running an oversized motor 24/7, burning through the energy budget with nothing to show for it. A properly sized dust collector starts with one number: the correct CFM.
At Senotay, CFM calculation is the foundation of every system we specify. This guide walks through the engineering logic, the formulas, real application data, and the mistakes that cost facilities thousands of dollars annually.
CFM stands for cubic feet per minute — the volumetric flow rate of air moving through your collection system. In dust collection, CFM determines whether the airstream has enough velocity to:
Capture airborne particles at the source
Transport captured dust through ductwork without settling
Deliver sufficient air volume to filter media for effective filtration
Two velocity values govern every CFM calculation: capture velocity (the air speed needed at the source to pull particles in) and transport velocity (the minimum duct speed to keep particles airborne — typically 3,500–4,500 FPM for wood dust and 3,500–5,000 FPM for metal fines).
The fundamental equation is straightforward:
CFM = Face Area (ft²) × Capture Velocity (FPM)
Where:
Face Area = the open area of the hood or capture point (in square feet)
Capture Velocity = the required airspeed at the dust generation point (in feet per minute)
Example: A woodworking table saw has a blade guard hood opening of 0.5 ft². ACGIH Industrial Ventilation guidelines recommend a capture velocity of 500 FPM for wood dust at a table saw. Therefore:
CFM = 0.5 ft² × 500 FPM = 250 CFM
That single machine requires 250 CFM at the hood. A shop with 8 machines running simultaneously doesn't simply multiply by 8 — duct diversity factors and simultaneous use rates apply, which is where system-level calculation diverges from single-machine estimation.
Different materials and operations require different capture velocities. Using the wrong value — even by 20% — leads to either poor capture or energy waste.
Source: ACGIH Industrial Ventilation Manual, 30th Edition; Senotay application database.
The jump from woodworking (500 FPM) to cement processing (2,000+ FPM) illustrates why copy-paste specifications fail — every application demands its own calculation.
Calculating CFM for a single hood is step one. Designing a system for a full facility involves three additional layers:
Add up the CFM for every collection point that will operate simultaneously. If not all machines run at once, apply a diversity factor (typically 0.65–0.85 for mixed-use shops).
Example: A metal fabrication shop has:
4 grinding stations × 800 CFM = 3,200 CFM
2 plasma tables × 1,500 CFM = 3,000 CFM
3 welding benches × 300 CFM = 900 CFM
Raw total: 7,100 CFM
Applied diversity factor (0.75): 5,325 CFM required
Real-world duct systems leak. A well-fabricated system loses 5–10% of design CFM through joints and connections. Always add a 10% buffer to the calculated requirement. In this example: 5,325 × 1.10 = 5,858 CFM → round to 6,000 CFM system capacity.
Senotay recommends sizing ductwork for 125% of current CFM need — adding machines later without a system upgrade is far cheaper than replacing the main collector.
A furniture manufacturing plant in the Midwest contacted Senotay in 2024 after persistent air quality complaints and two OSHA citations within 18 months. Their installed dust collector was rated at 4,200 CFM — specified by the equipment vendor at the time of purchase.
Senotay's Assessment Findings:
Actual simultaneous CFM demand from active machines: 6,800 CFM
Measured transport velocity in main trunk duct: 2,900 FPM (below the 3,500 FPM minimum for wood dust)
Result: Dust settling in ductwork, reduced capture at machines, elevated airborne particle count
Correction Applied:
System upgraded to a baghouse collector rated at 8,000 CFM (with 18% headroom)
Duct sections re-sized to maintain 3,800 FPM transport velocity throughout
After installation: Airborne particle count dropped 74% within 30 days
OSHA re-inspection: Full compliance, zero citations
Cost of under-specification: $34,000 in OSHA fines, $18,000 in early filter replacement, and $22,000 in productivity loss — $74,000 total before the correction was made. The correctly sized system cost $51,000 installed.
CFM at the inlet is only half the picture. The filter media inside the collector must handle the incoming air volume without excessive pressure drop. The standard metric is air-to-cloth ratio (ACR):
ACR = System CFM ÷ Total Filter Area (ft²)
A system running at too high an ACR chokes on its own volume — pressure drop increases, motor load climbs, and filter life collapses. Senotay's system sizing process matches ACR to dust type before any equipment is selected, ensuring the filter surface area supports the calculated CFM without compromise.
Using rated CFM instead of actual CFM: Equipment nameplates show maximum rated CFM at zero static pressure — real operating CFM at design static pressure is always lower, sometimes by 30–40%.
Ignoring duct static pressure losses: Every elbow, transition, and branch adds resistance. A 200-foot duct run with 8 elbows can drop available CFM by 15–25% if not accounted for.
Forgetting simultaneous use rates: Assuming all machines run at once inflates system cost; assuming none do creates under-capacity. A real operational audit is the only accurate input.
Skipping the transport velocity check: CFM at the collector means nothing if the duct velocity is too low to move dust — particles settle, clog, and become a fire hazard.
No re-calculation after adding equipment: Every machine added to an existing system changes the CFM balance. Senotay recommends a system audit whenever production capacity increases by more than 15%.
Senotay does not use rule-of-thumb estimates for client installations. Every project begins with a formal ventilation survey — mapping machine locations, measuring actual hood geometries, logging operational schedules, and modeling duct resistance using system curve analysis.
The output is a CFM specification that accounts for every variable: capture requirements, transport velocity, filter area, static pressure losses, and future expansion capacity. Clients receive a system that performs on day one and continues performing through its full operational life — without costly mid-cycle corrections.
