Enclosed Helical Transport for Powders, Granules & Bulk Solids
The TSC Series Tubular Screw Conveyor provides dust-tight mechanical transport for dry, granular, or powdery materials within a fully enclosed cylindrical casing. Driven by an internal rotating helical flight, it moves bulk solids horizontally or at inclines up to 60° while maintaining over 99% dust containment. Available in carbon steel and hygienic AISI 304, 316L, or 321 stainless steel grades, the TSC Series protects against spillage, material loss, and workplace contamination.
Featured Model Variants
TSC200 | Grain, Feed & Light Minerals
Capacity: 30–70 m³/h | Tube Diameter: 200 mm | Power: 2.2–5.5 kW
Ideal for cement, lime, agricultural feed, and fertilizer processing.
TSC400 | Heavy Chemical & Mineral Transfer
Capacity: 140–220 m³/h | Tube Diameter: 400 mm | Power: 7.5–15.0 kW
Engineered for continuous chemical plants, heavy powders, and mineral handling.
TSC600 | High-Volume Industrial Bulk Handling
Capacity: 250–350+ m³/h | Tube Diameter: 600 mm | Power: 15.0–45.0 kW
High-capacity system for large cement plants, energy facilities, and port terminals.
Key Technical Specifications
Capacity & Incline Range: Throughputs from 5 to 350+ m³/h across horizontal and inclined layouts from 0° to 60°.
Dimensions & Materials: Available tube diameters from 100 to 600 mm, single-drive lengths up to 50 meters, and Q235 carbon steel or SS304/SS316L/SS321 stainless construction.
Operating Limits & Drive: Operating temperature tolerance up to 200°C with motor power options from 0.55 kW to 45 kW and IP55/IP65 drive protection.
Why Use a Tubular Screw Conveyor?
Choosing a Tubular Screw Conveyor ensures a clean, sealed, and space-saving transport system, minimizing product loss and environmental contamination. It is ideal for industries dealing with dusty, sticky, or hazardous materials, where product integrity and workplace safety are crucial.
Key Benefits:
Dust-tight design: Prevents spills and ensures over 99% containment.
Corrosion and heat resistance: Suitable for products up to 200°C.
Modular and compact layout: Perfect for complex plant configurations.
Energy-efficient operation: Seamless power transmission with minimal loss.
Applications include food, feed, grain, chemical, cement, mineral, and powder-processing industries.
Why Leading Plants Choose SENOTAY Tubular Screw Conveyor
Factory-Direct Pricing. Certified Quality. Dedicated Support.
Best Price Guarantee
Certified & Compliant
Fast, Reliable Delivery
Model Comparison Table – Tubular Screw Conveyor Types
Model Type | Tube Diameter (mm) | Capacity (m³/h) | Max Length (m) | Motor Power (kW) | Incline (°) | Material Compatibility |
TSC100 | 100 | 5–20 | 12 | 0.55–2.2 | 0–30 | Fine powders |
TSC160 | 160 | 15–45 | 15 | 1.1–3.0 | 0–30 | Grain & feed |
TSC200 | 200 | 30–70 | 20 | 2.2–5.5 | 0–30 | Cement, lime |
TSC250 | 250 | 50–100 | 25 | 3.0–7.5 | 0–25 | Fertilizers |
TSC315 | 315 | 90–150 | 30 | 5.5–11 | 0–25 | Chemicals |
TSC400 | 400 | 140–220 | 35 | 7.5–15 | 0–20 | Minerals, powders |
TSC500 | 500 | 200–280 | 40 | 11–22 | 0–20 | Grain & bulk solids |
TSC600 | 600 | 250–350+ | 50 | 15–45 | 0–15 | Heavy-duty & cement |
WLS Shaftless | 220–400 | 10–150 | 30 | 3–11 | 0–30 | Sludges, sticky materials |
LC Vertical | 160–400 | 5–80 | 20 | 4–15 | 30–90 | Vertical lifting |
Tubular Screw Conveyor — Technical Specification Table
Physical Dimensions | Performance Ratings | Material & Construction | Operational Data | Certifications & Lifecycle |
Conveyor Length: 1–30 m | Flow Rate: 2–60 m³/h | Q235 / SS304 / SS316L | 1.1–22 kW | ISO 9001:2015, CE |
Tube Diameter: Ø159 / Ø219 / Ø273 / Ø323 / Ø407 mm | Operating Temp: 0–180°C | Carbon Steel / SS304 | 30–90 rpm | 12–24 months |
Inlet Size: 200–500 mm | Max Pressure: ≤ 0.1 MPa | Sealed Ball Bearing | 280–3,200 kg | 20,000–40,000 hours |
Outlet Size: 150–400 mm | Max Load Capacity: 0.5–20 t/h | Rubber / PTFE | 60–180 Nm | 6–12 months |
Flange Size: DN200–DN500 | Max Incline Angle: 0°–60° | 8.8 / SS304 | 8–16 holes, Ø12–Ø18 mm | GB16297-1996 |
(BCD): 240–580 mm | Vibration Level: ≤ 1.8 mm/s | Painted / Polished SS | –10°C to 45°C | Continuous 24/7 |
Section Length (Modular): 750–2,000 mm | Energy Efficiency: ≥ 90% | 3–6 mm | 2–4 Welded Lugs | ≥ 80,000 cycles |
Overall Height: 300–1,000 mm | Conveying Efficiency: ≥ 95% | Helical / Shaft-Mounted | ≤ 75 dB(A) | IP55 / IP65
|
Product Description
Our stainless-steel tubular screw conveyors are available in AISI 304, 316L, and 321 grades for durability and hygienic performance. They transport dry, wet, corrosive, or high-temperature materials with minimal product degradation.
Material Properties:
Material | Characteristics | Applications |
Stainless Steel 304 | Corrosion-resistant, durable | Food & beverage, pharmaceuticals |
Stainless Steel 316L | High heat & chemical resistance | Chemical, petrochemical industries |
Carbon Steel | Cost-effective and strong | Construction, cement plants |
Standard Physical & Mechanical Properties:
Temperature tolerance: Up to 200°C.
Capacity range: 5–350+ m³/h.
Shaft diameter: 100–600 mm.
Length: Up to 50 meters per drive unit.
Incline angle: Standard 0°–30°, higher on request.

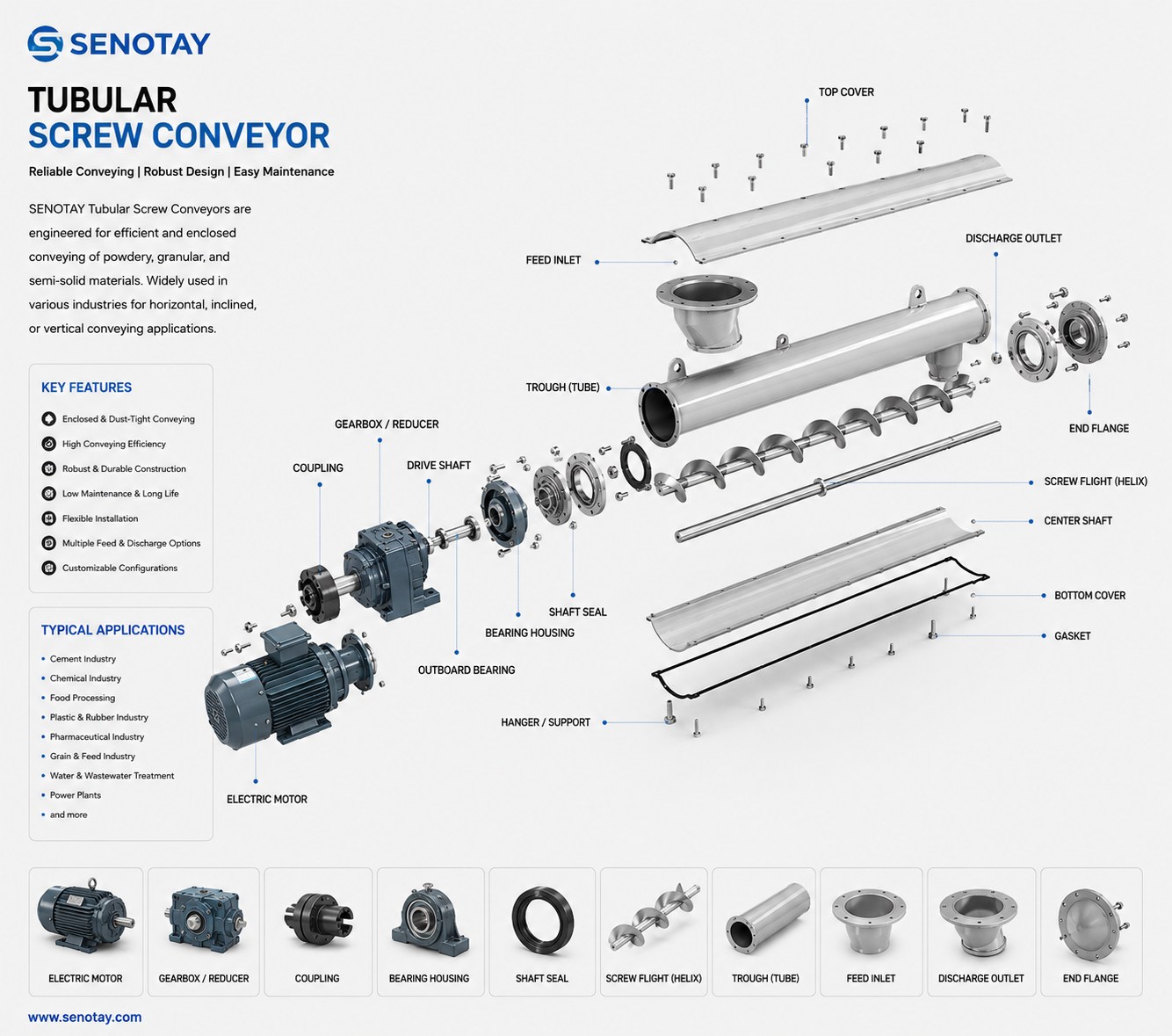

Core Components
Seamless Tubular Casing – Fabricated from precision-rolled stainless or carbon steel.
Central Shaft & Screw Flight – Wear-resistant steel; flight thickness 4–10 mm.
Intermediate Bearings – Sealed, self-lubricating type for long service life.
Drive Units – Motor power from 0.55–45 kW with heavy-duty gearbox.
End Seals – Dust-proof and moisture-resistant sealing mechanism.
Installation Method
Site Preparation: Level and secure the base frame.
Section Assembly: Connect 3–6 m modular sections via flanged joints.
Bearing & Shaft Alignment: Ensure precise centering for smooth rotation.
Motor & Drive Coupling: Install according to torque specifications.
Sealing & Testing: Inspect for dust leaks and test under load conditions.
Technical Advantages in Senotay Manufacturing
At Senotay, we integrate advanced fabrication technology, strict quality control, and precision engineering to produce world-class tubular conveyors.
ISO 9001:2015 & CE Certified Fabrication.
CNC Machining for Accurate Dimensions.
Dynamic Balancing for Reduced Vibration.
Custom Design Flexibility: For vertical, horizontal, or inclined layouts.
Long Lifespan: Components rated up to 20 years under standard operation.
Explore More Conveying Equipment with SENOTAY
▪ Screw Conveyor
▪ GLS Tubular Screw Conveyor | LS Screw Conveyor | TD Bucket Elevator | WLS Shaftless Screw Conveyor
| Tubular Screw Conveyor | U-type Screw Conveyor | Shaftless Screw Conveyor
▪ Chain Conveyor
▪ MS Chain Conveyor | FU Chain Conveyor
▪ Bucket Elevator
▪ NE Bucket Elevator | TH Bucket Elevator
▪ Dust Humidifying Mixer
▪ SJ Humidifying Mixer | BDSZ Humidifying Mixer
▪ Rotary Feeder
▪ YJD-A-Square Rotary Feeder | YJD-B rotary feeder | YJD-HG-Square rotary feeder | YCD-HG-Square unloader
FAQs
1. What materials can a Tubular Screw Conveyor handle?
Answes:It can handle dry powders, wet slurries, granules, grains, cement, fly ash, and chemical powders.
2. What is the maximum conveying capacity?
Answes:Senotay tubular conveyors handle up to 350+ m³/h, depending on model and angle.
3. Can it be used vertically?
Answes:Yes, the LC vertical screw conveyor variant supports vertical material lifting.
4. How is maintenance handled?
Answes:Periodic inspection every 2,000 hours and lubrication every 400 hours ensure long lifespan.
5. How can I order a custom tubular screw conveyor?
Answes:Contact Senotay directly via info@senotay.com or call +86-158-318-71808 for tailored engineering solutions.
