Continuous Dust Suppression & Slag Conditioning System
The SJ Series Humidifying Mixer is a heavy-duty, dual-shaft conditioning system engineered to blend dry industrial powders, fly ash, slag, and dust with water into a non-dispersible, transportable slurry. Using dual counter-rotating shafts with staggered high-shear paddles paired with a PLC-controlled liquid atomization spray system, it cuts airborne dust emissions by over 95% while holding moisture uniformity within ±1.5%. Designed for continuous, heavy-duty processing, it prevents fugitive dust during ash handling and transport across thermal power plants, cement mills, mining sites, and steel manufacturing operations.
Core System Advantages
95%+ Fugitive Dust Reduction: Converts fine, dispersible dry ash and slag into a stabilized, non-dusting moist cake for clean open-truck transport or disposal.
PLC Precision Water Dosing: Stainless-steel atomizing nozzles spray micro-droplets (0.1–0.3 mm), maintaining precise moisture control between 8% and 12% with ±1.5% uniformity.
Cr26Mo2 High-Chrome Wear Protection: Replaceable high-chrome alloy liner plates and 42CrMo forged shafts provide 3–5 times the wear life of conventional carbon steel mixers.
Featured Model Variants
SJ-400 | Cement Mill & Fly Ash Conditioning
Capacity: 40 t/h | Power: 18.5 kW | Torque: 5,500 Nm
Ideal for medium-scale cement clinker dust conditioning and boiler ash treatment.
SJ-800 | Steel Plant Slag & Mining Line
Capacity: 80 t/h | Power: 55.0 kW | Torque: 28,000 Nm
Engineered for heavy, abrasive steel furnace slag, mining tailings, and continuous waste conditioning.
Why choose SJ Humidifying Mixer?
Industrial operations are increasingly challenged by fugitive dust emissions that directly put impact air quality and worker safety. The SJ Humidifying Mixer delivers a proven dust suppression solution that ensures compliance with both China’s GB 16297-1996 and EU IED 2010/75/EU standards.
Here some reason why industries trust the SJ Series:
IT have ability Up to 95% dust emission reduction after mixing.
It can Moisture uniformity within ±1.5% which ensuring precise conditioning.
The mixer have High durability with Cr26Mo2 wear-resistant liners for a 3–5× longer lifespan.
It is specially Designed for harsh industries like mining, cement and waste management.
We are a ISO 9001:2015 and ISO 14001:2015 Certified Manufacturer.
Why Leading Plants Choose SENOTAY SJ Humidifying Mixer
Factory-Direct Pricing. Certified Quality. Dedicated Support.
Best Price Guarantee
Certified & Compliant
Fast, Reliable Delivery
SJ Series Technical Comparison Table
Model Type | Capacity (t/h) | Power (kW) | Output Torque (Nm) | Weight (kg) | Dimensions (mm) | Application Area |
SJ-200 | 20 | 7.5 | 1,200 | 1,200 | 2,600×1,050×1,500 | Small plant operations |
SJ-300 | 30 | 11 | 2,800 | 1,650 | 2,950×1,200×1,650 | Cement mills |
SJ-400 | 40 | 18.5 | 5,500 | 2,400 | 3,300×1,300×1,750 | Fly ash conditioning |
SJ-500 | 50 | 30 | 11,000 | 3,600 | 3,800×1,450×2,000 | Power station dust control |
SJ-600 | 60 | 45 | 22,000 | 5,200 | 4,200×1,600×2,200 | Industrial mining |
SJ-800 | 80 | 55 | 28,000 | 6,200 | 4,500×1,800×2,300 | Steel plant slag handling |
SJ-1000 | 100 | 75 | 35,000 | 7,200 | 4,800×1,950×2,400 | Waste incineration |
SJ-1200 | 120 | 90 | 45,000 | 8,800 | 5,000×2,100×2,500 | Large-volume mixing |
SJ-1500 | 150 | 110 | 55,000 | 10,200 | 5,500×2,300×2,600 | Cement & power integration |
SJ-2000 | 200 | 132 | 68,000 | 12,000 | 6,000×2,500×2,800 | Heavy industrial systems |
SJ Humidifying Mixer – Technical Specification Table
Physical Dimensions | Performance Ratings | Material & Construction | Operational Data | Certifications & Lifecycle |
Length: 2200 mm | Operating Pressure: 1.2 Bar | Q235 Steel | 180 Nm | 18,000–25,000 hrs |
Width: 950 mm | Max Pressure: 1.6 Bar | Alloy Steel 42CrMo | 12 × Ø18 mm | 24–36 months |
Height: 1250 mm | Flow Rate Capacity: 20–55 m³/h | High-Mn Steel | 1,150 kg | ISO 9001 / CE |
Inlet Flange: DN300 | Mixing Efficiency: ≥96% | NBR Rubber | 11 kW | > 10,000 cycles |
Outlet Flange: DN250 | Moisture Range: 8–12% | 80–120 μm | 36–42 rpm | > 120,000 cycles |
BCD: 360 mm | Max Temperature: 80°C | 8 mm | ≤ 4.5 mm/s | 12 months |
Shaft Diameter: 85 mm | Operating Temperature: 10–60°C | GB/T 12467 Level 2 | 2 × Rated 1 Ton | Industrial Grade II
|
Product Description & Material Properties
Its a counter-rotating dual-shaft system that processes 10–200 tons/hour, depending on the model. It integrates high-torque mixing blades and a PLC-controlled spray system to deliver precision moisture control and uniform blending.
Material Properties & Standard Mechanical Characteristics
Property | Specification | Description |
Capacity Range | 10–200 t/h | Adjustable based on material density |
Moisture Uniformity | ±1.5% | PLC-controlled water dosing |
Residual Dust Emission | <5% | Tested as per ASTM D6913 |
Liner Material | Cr26Mo2 High-Chrome Alloy | 3–5× wear resistance vs carbon steel |
Shaft Material | 42CrMo Alloy Steel | Heat-treated for strength & torsion |
Sealing System | Labyrinth + Double Lip | IP65 rated, dust-proof operation |
Service Life | 10–15 years | Under continuous operation |

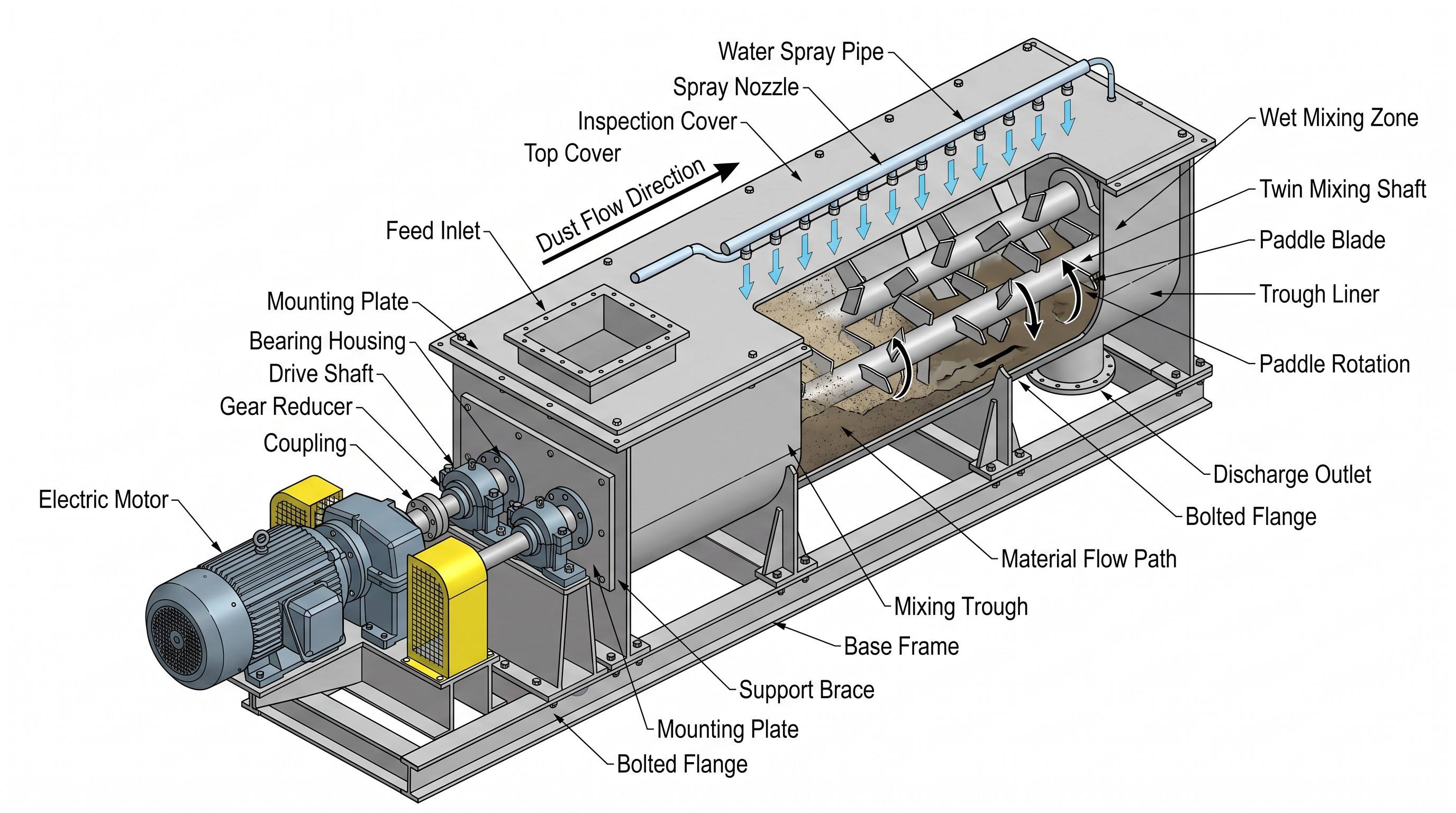

SJ Humidifying Mixer Work process
The working mechanism of its involves four precision engineered stages:
Material Infeed: In the material feeding process those dry dust or ash is fed through a volumetric screw conveyor into the sealed mixer chamber.
Dual-Shaft Mixing: Here inside the mixing process is two counter-rotating shafts equipped with staggered paddles generate strong shear forces which intensively agitating dry materials.
Water Injection: For water injection the stainless-steel atomization system sprays micro-droplets (0.1–0.3 mm) uniformly for controlled humidity between 3–8%.
Discharge: The conditioned material is discharged through a sealed outlet for safe handling or landfill deposition.
This process reduces airborne dust, optimizes moisture use by 30%, and ensures continuous, clog-free operation even under heavy-duty loads.
Core Features
Dual-shaft counter-rotating design for efficient, uniform mixing.
Sealed structure to prevent secondary dust emissions.
PLC automation enabling accurate water dosing and process optimization.
High-chrome wear liners ensuring extended service life.
Compact design for easy installation and maintenance.
Low noise level (≤75 dB) per ISO 3744 standard.
Energy-efficient gearbox with 92–96% transmission efficiency.

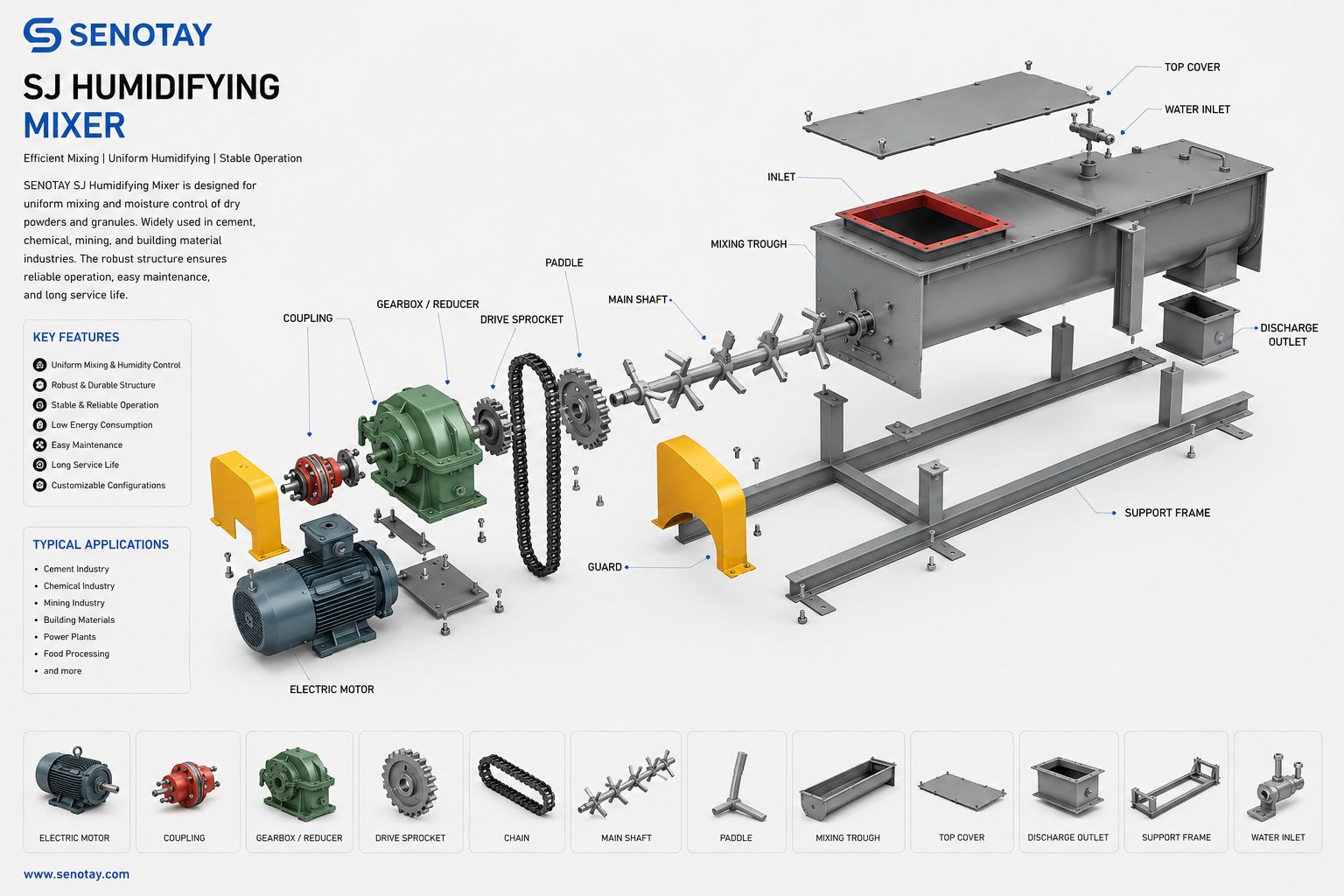

Core Components
Component | Material | Key Feature | Service Life | Performance |
Dual Mixing Shafts | 42CrMo Alloy Steel | High torsional strength | 5–8 years | Continuous mixing |
Mixing Paddles | Replaceable wear parts | High shear force | 3–5 years | Uniform blending |
Liner Plates | Cr26Mo2 | Wear-resistant | 3–5× longer | Long-term durability |
Spray System | SUS304 Nozzles | Anti-clogging atomization | 1–2 years | Uniform moisture |
Gear Reducer | IP65 Rated | Oil-bath lubrication | 20,000+ hours | 95% efficiency |
Electrical System | PLC Automation | Adjustable moisture control | — | Smart operation |
Installation Method
Foundation Preparation: Kindly Install on a rigid and level concrete base per DIN/ISO foundation standards.
Shaft Alignment: For shaft alignemnt please ensure alignment within ≤0.02 mm tolerance before startup.
Utility Connections: Makesure the water connection, electrical and dust control systems.
Testing & Calibration: Verify motor rotation, spray control and discharge gap settings.
Operation Start-Up: Initiate gradually and monitor vibration and noise per ISO 10816.
Technical Advantages in Manufacturing (Senotay Factory Precision)
Senotay’s manufacturing process ensures each SJ Humidifying Mixer meets rigorous global standards through:
CNC machining and dynamic balancing for counter-rotation precision.
Quality-certified gear reducers (≥95% efficiency).
Full modular customization — material, speed, and power according to client requirements.
ISO 9001 & ISO 14001 certified quality control system.
ATEX/IECEx certification options for explosive or high-dust zones.
Explore More Conveying Equipment with SENOTAY
▪ Screw Conveyor
▪ GLS Tubular Screw Conveyor | LS Screw Conveyor | TD Bucket Elevator | WLS Shaftless Screw Conveyor
| Tubular Screw Conveyor | U-type Screw Conveyor | Shaftless Screw Conveyor
▪ Chain Conveyor
▪ MS Chain Conveyor | FU Chain Conveyor
▪ Bucket Elevator
▪ NE Bucket Elevator | TH Bucket Elevator
▪ Dust Humidifying Mixer
▪ SJ Humidifying Mixer | BDSZ Humidifying Mixer
▪ Rotary Feeder
▪ YJD-A-Square Rotary Feeder | YJD-B rotary feeder | YJD-HG-Square rotary feeder | YCD-HG-Square unloader
Frequently Asked Questions (FAQs)
Q1. What industries commonly use SJ Humidifying Mixers?
Answers: The system is used across cement, power, steel, mining, and waste management plants for dust control and ash conditioning.
Q2. How long is the lifespan of the equipment?
Answers: With proper maintenance, 10–15 years of reliable service life and low downtime.
Q3. What is the warranty period?
Answers: 18–24 months standard warranty, with long-term technical support.
Q4. How to choose the right model?
Answers: Model selection depends on capacity (t/h), material density, and installation space. Contact Senotay’s engineering team for customized solutions.
Q5. What makes Senotay a reliable supplier?
Answers: Over 15 years of R&D experience, 200+ global clients, ISO-certified manufacturing, and export presence in 30+ countries.
.
