SENOTAY galvanized bag cages combine a steel-wire support framework with a specified zinc finish. Select the SB configuration by bag length, cage diameter, connection details and coating process. Confirm the actual gas environment and complete assembly limits before choosing a galvanized replacement.

  • SB-01: listed bag length 3000 mm; cage diameter 120 mm.

  • SB-08: listed bag length 6000 mm; cage diameter 180 mm.

  • Framework options:8–24 vertical wires.

Request a quotation Email specifications

Contact us

Galvanized bag cages for drawing-matched filter-bag support

A galvanized bag cage supports the filter fabric while its zinc finish provides a selected protective surface for the steel. SENOTAY lists SB configurations with different lengths, diameters and finishes. Start with mechanical fit, then assess whether the chosen coating is appropriate for moisture, condensate chemistry, abrasion and temperature in your collector.

SB-01 BAG LENGTH

3000 mm

Published reference; confirm cage overall length.

SB-08 BAG LENGTH

6000 mm

6.0 m bag-length reference, not a rigidity guarantee.

SB DIAMETERS

100–180 mm

Listed non-custom model references.

WIRE SUPPORT

8–24 wires

Select with the bag construction and approved drawing.

SB galvanized cage dimensions and finishes

SB catalogue references — bag length is not automatically cage overall length
ModelBag Length (mm)Cage Diameter (mm)Surface FinishWeight (kg)
SB-013000120Hot-dip galvanized1.5
SB-023500130Electro-galvanized2.0
SB-032000110Zinc plated2.5
SB-044000140Powder-coated zinc3.0
SB-055000150Bright galvanized3.5
SB-062500125Thick zinc coating4.0
SB-075500160Hybrid coating4.5
SB-086000180Semi-gloss finish5.0
SB-093000100Anti-corrosive coat5.5
SB-10CustomCustomCustom galvanized6.0

The table preserves the published bag-length, cage-diameter and weight references. Confirm actual cage length, collar detail, base and any section joints on the quotation drawing. Finish descriptions are not interchangeable coating processes; the selected zinc process and coverage must be stated.

Framework and zinc-coating specification

Construction references to confirm against the order
ItemReference / purchase requirement
Base wire materialQ195 / Q235 carbon steel, subject to material identification
Hot-dip coating reference50–80 µm; confirm the agreed thickness and measurement locations for the selected process
Vertical wire count8–24
Support-ring spacing150–200 mm
Support-ring wire diameter3.0–4.0 mm
Vertical wire diameter3.5–4.0 mm
Published material-property referencesTensile strength ≥340 MPa; elongation ≥12%; hardness 60–70 HRB — request grade/batch evidence
Dimensional tolerance reference±0.5 mm; apply only to drawing features explicitly agreed for inspection

A material-property value is not a whole-cage structural-load rating. For the zinc finish, agree process, coating measurement, acceptable local defects and repair procedure. Do not apply a hot-dip coating specification automatically to electro-galvanized or other SB finishes.

Zinc finish, wire construction and inspection features

Specify the galvanizing process

Hot-dip galvanizing, electro-galvanizing and other listed finishes are different ordering descriptions. State the selected process, nominal coating requirement and relevant acceptance criteria; do not assume that all SB models have the same coating thickness.

Protect the bag-contact surface

Inspect wire ends, welded intersections, top collars and bottom cups for roughness or protrusions. A protective finish must not create sharp accumulations at bag-contact points. Handling and packing should avoid bending or scraping the framework.

Match long-cage construction

The 6000 mm bag-length reference is twice the 3000 mm reference. That simple length comparison does not establish equal stiffness or interchangeability: wire layout, joints, lifting access and cage straightness still need drawing review.

Choose zinc for the actual environment

Temperature, wet shutdowns, condensate chemistry and abrasive dust can affect coating service. A cage selected for one process should not be moved to another solely because the nominal diameter matches. Request the complete construction’s operating envelope.

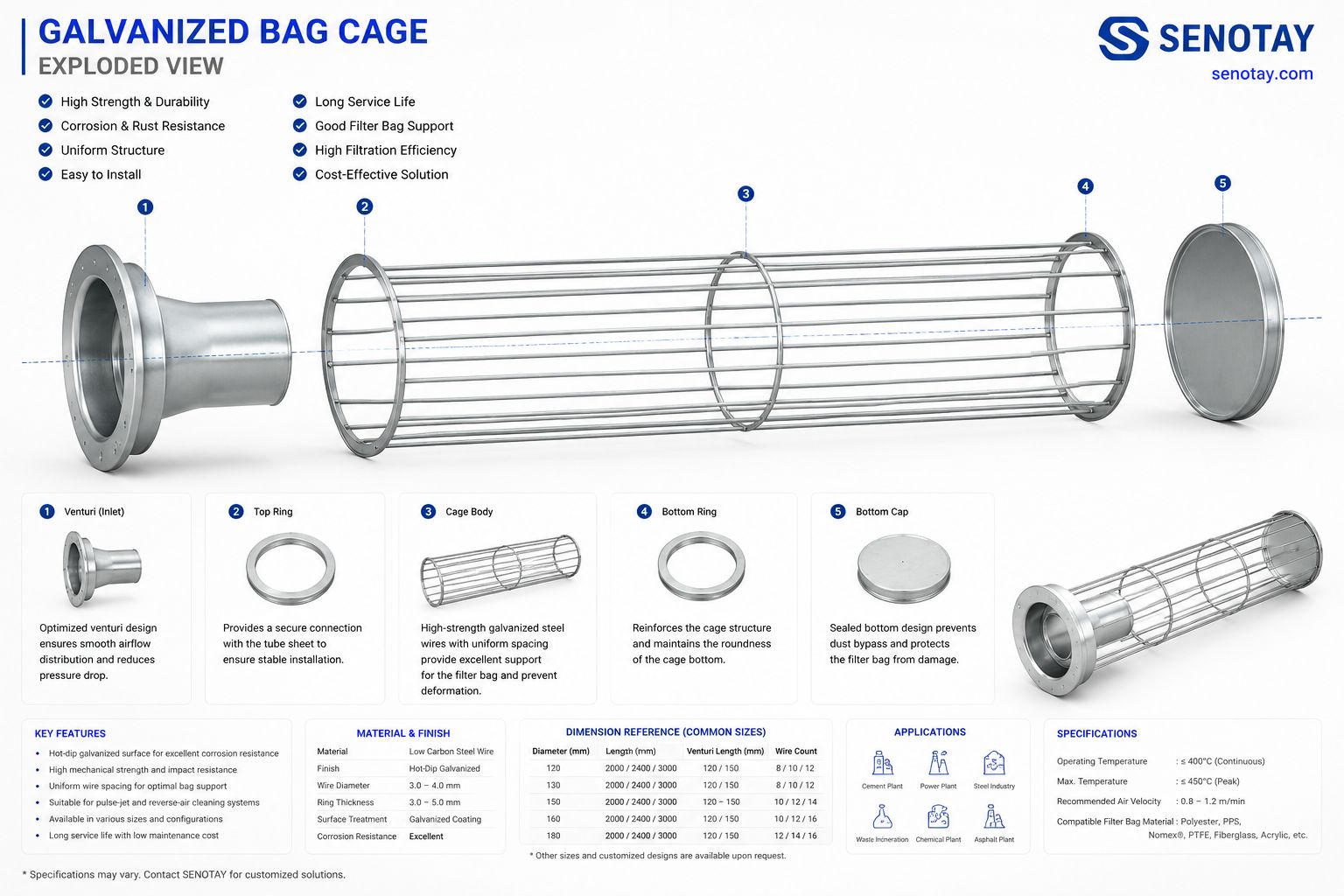

Galvanized round wire bag cage with a flanged top connection

Product photograph shows a component example. Confirm the ordered profile, finish and connections on the approved drawing; appearance alone does not establish the material grade or operating limits.

What to include when ordering zinc-coated filter cages

Compare the replacement against an undamaged sample and the baghouse drawing. Identify whether the quoted length is a bag dimension or a cage dimension; the catalogue model table labels it as bag length. The separate top connection and tube-sheet interface must also match.

Galvanized cage RFQ checklist
Review itemInformation to supplyConfirmation needed
Mechanical fitCage body diameter, actual cage length, bag specification, tube-sheet interfaceApproved assembly drawing and fit basis
Wire frameworkWire count/gauges, ring spacing, bottom and collar constructionSupport and clearance suited to the bag
FinishSelected galvanizing process, required coverage/thickness and surface conditionFinish specification and inspection method
Gas conditionsNormal/peak temperature, moisture, condensate chemistry and abrasive loadingCoating and assembly compatibility
ProcurementQuantity, sample/drawing revision, inspection and packing requirementsWritten quotation, lead time and delivery terms

Receiving checks and maintenance observations

Before installation, inspect for bent wire, distorted rings, loose joints, coating damage and sharp weld/contact points. Compare the supplied dimensions with the approved drawing rather than the shipping description alone. Where a coating test is specified, require the method, specimen and result rather than treating a standard number as proof of testing.

Inspect installed components only under the site’s isolation and access procedures. Track corrosion locations and recurring bag wear; localized coating loss near a joint or collar can indicate handling, abrasion or contact problems. Do not use a universal replacement interval or a claimed life multiplier as a maintenance schedule.

The American Galvanizers Association discusses coating behavior in extreme temperatures. This is general galvanizing guidance, not a temperature rating for a SENOTAY cage or filter-bag assembly.

Application fit and material alternatives

Galvanized supports may be considered for compatible baghouse duties in cement grinding, foundry, mineral-handling and other industrial processes. A sector name alone does not establish suitability. High-temperature, strongly corrosive, food-contact or hazardous-dust requirements need a configuration-specific review; select another steel or coating when the duty requires it.

Quality documents and purchase inspection

SENOTAY publishes ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 management-system certificates for Hebei Outai on the Quality Control & Certifications page. Request current copies and confirm scope. These management documents are not blanket product certification or proof that a particular cage meets every destination requirement.

Define the inspection package in the purchase order: approved drawing revision, material identification, dimensional checks, joint and weld condition, coating/finish requirements and packing protection. Where test reports are required, agree the test method, sample, acceptance criteria and reporting before manufacture. Confirm applicable product conformity documentation for the quoted configuration rather than relying on a generic badge.

Buyer questions

Is hot-dip galvanizing the same as electro-galvanizing?

No. The catalogue distinguishes the processes. Specify the required finish and acceptance criteria on the order; do not infer coating thickness or service life from the word galvanized alone.

Can SB-01 and SB-08 use the same replacement drawing?

No. Their listed bag lengths and cage diameters differ. Review actual cage dimensions, top/bottom features, wire framework and installation access separately.

What temperature can a galvanized cage operate at?

Use the manufacturer-approved limit for the selected steel, zinc finish and complete bag–cage assembly. Generic material values and conflicting catalogue temperature statements are not a reliable operating instruction.

Can I order a guaranteed number of service years?

Service life depends on corrosion, abrasion, handling, bag fit and operating conditions. Agree any warranty and inspection requirements in the quotation; a generic multi-year claim is not a maintenance guarantee.

Related baghouse replacement components

Match the filter bag and cage together. Compare the relevant cage geometry, finish and filter media rather than treating similar-looking replacement parts as interchangeable.

Request an SB galvanized bag cage quotation

Send the actual cage and bag dimensions, SB reference if known, collar and joint details, zinc-process requirement and quantity. Include operating conditions and required inspection documents so the proposed finish and replacement fit can be confirmed.
