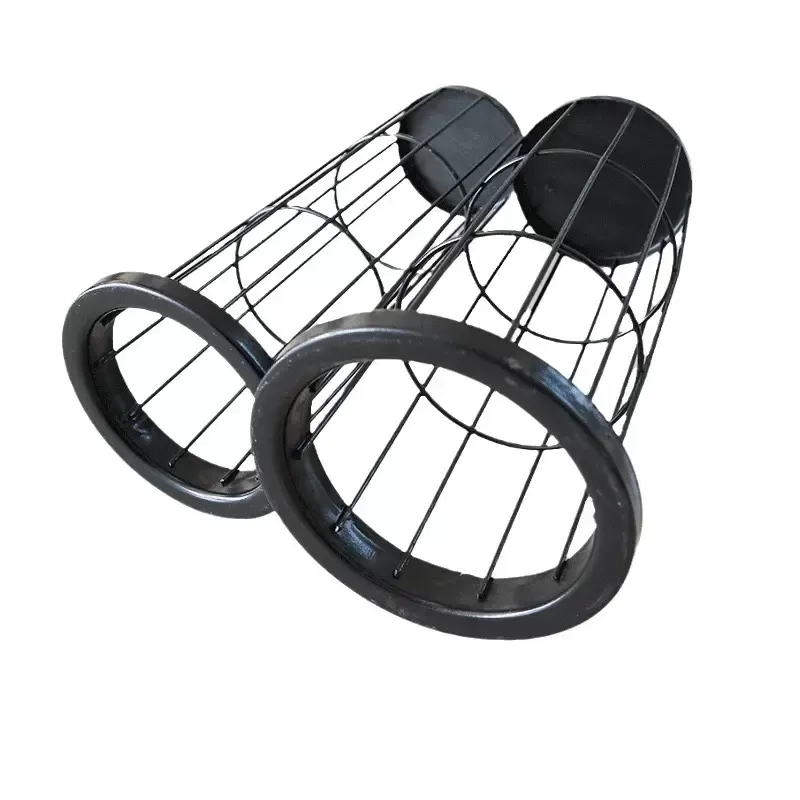

What is a Dust Collector Bag Cage?
A Dust Collector Bag Cage is basically also known as a filter bag cage, dust catcher cage, or baghouse cage that is a crucial supporting framework designed to hold and stabilize filter bags inside industrial baghouse dust collectors.
It acts as the structural skeleton of the filter bag which is ensuring that the filter media maintains its shape and integrity during the filtration and cleaning process.
Manufactured by Hebei OuTai Environmental Protection Equipment Co., Ltd. (Senotay), our dust collector cages are crafted with high precision and durability that is basicallly ensuring optimal performance in heavy-duty industrial environments such as power plants, steel factories, cement plants and chemical industries.
Main Features and Properties of Dust Collector Bag Cage
Feature | Description |
Material Options | Carbon Steel Wire, 304 Stainless Steel, 316 Stainless Steel |
Surface Treatment | Galvanization, Plastic Spraying, Silicone Coating |
Vertical Steel Wires | 8–24 Lines (Customizable) |
Support Ring Spacing | 150–200 mm |
Wire Diameter | 3.0 – 4.0 mm |
Length Range | 400 mm to 10,0000 mm (Customizable) |

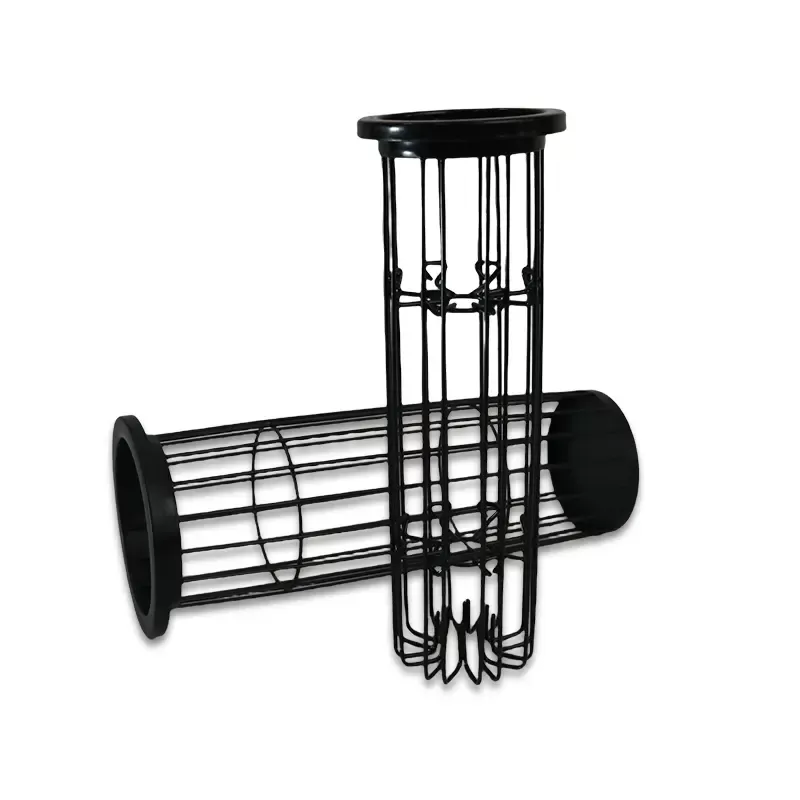

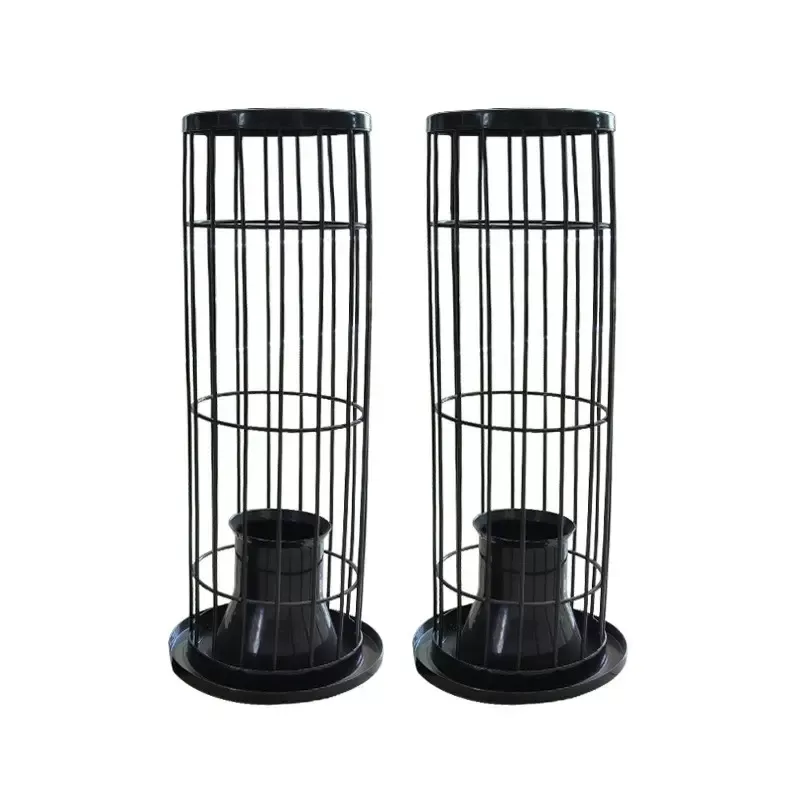

Structure Options | Multi-section, Venturi Tube, Quick Plug, Chuck Type |
Shape Options | Round, Trapezoidal, Flat, Oval, Pleated, Diamond Type |
Features of Dust Collector Bag Cage
Structure: bag cage usually consists of header cover, protective sleeve, frame longitudinal inner bar, frame longitudinal outer bar and bottom cover, etc. It has different structural forms such as multi-section type, ventilator or protection short tube, down-unloading type, plug-in type and chuck type.
Characteristics: The bag cage has enough strength and rigidity to withstand the gas pressure of the filter bag in the state of filtration and soot removal, and prevent deformation during transport and installation.
Surface Treatment:
The surface treatment includes galvanisation, plastic spraying, organosilicon spraying, etc. to enhance the corrosion resistance, acid and alkali resistance of the bag cage and prolong the service life.
Specification and shape:
Specification: The diameter of bag cage is usually between 100cm and 200cm, and can be customised according to customer requirements.
Shape: Common shapes include round, trapezoidal, oval, pleated, flat, rhombic envelope type, multi-section type, and so on.
Application areas:
Dust collector bag cage is widely used in electric power, iron and steel, chemical industry, coking, coal mining, non-ferrous smelting and other industries for dust removal treatment of various industrial exhaust gases.
Use life:
Under normal use and maintenance conditions, the service life of dust collector bag cage is generally up to more than 3 years.
In short, the dust collector bag cage is an indispensable accessory in the bag filter, and its quality directly affects the dust removal effect and the service life of the filter bag.
Dust Collector Bag Cage – Product types
Model Code | Vertical Wires | Surface Coating | Cage Shape | Service Life (Years) |
SC-101 | 8 | Galvanized | Round | 3–4 |
SC-202 | 10 | Plastic Coated | Oval | 3–5 |
SC-303 | 12 | Epoxy Coated | Trapezoidal | 4 |
SC-404 | 14 | SS Polished | Flat | 5 |
SC-505 | 16 | Silicone Coated | Round | 5–6 |
SC-606 | 18 | Galvanized | Multi-section | 5 |
SC-707 | 20 | Zinc-Plated | Pleated | 6 |
SC-808 | 22 | Dual Coated | Diamond | 6–7 |
SC-909 | 24 | SS304 | Flat | 7 |
SC-1010 | 24 | SS316 | Round | 8–10
|
Technical Advantages in Manufacturing Dust Collector Bag Cage
At Senotay our well prepared cutting-edge engineering and precision manufacturing ensure every dust collector filter cage meets international standards for performance, durability and compatibility.
Our Key Technical Advantages:
Advanced Welding Technology:Our One-time automatic mold welding ensures surface smoothness and no burrs that could damage bags.
High Strength & Rigidity: In our specialized lab we Verified load-bearing tests ensure no deformation during operation or transportation.
Surface Protection: It is Multi-layer galvanization and silicone coatings enhance corrosion and oxidation resistance.
Customized Engineering: Products Shapes, diameters and venturi designs can be tailored to any baghouse system.
Quality Assurance System: Each cage undergoes visual inspection, dimensional testing, and coating verification.
This level of manufacturing precision makes Senotay a trusted global filter cage manufacturer.
Specification of Dust Collector Bag Cage
Parameter | Specification(s) | Standard / Test | Application Range | Notes |
Material Options | Carbon Steel, 304 SS, 316 SS | Material certification | Application specific | Selection based on environment |
Vertical Wire Count | 8-24 lines | Visual inspection | Custom configurations | Higher counts for larger bags |
Support Ring Spacing | 150-200mm | ISO 2768 | 100-250mm | Optimized for cleaning efficiency |
Support Ring Diameter | φ3.0-Φ4.0mm | ISO 2768 | Material dependent | Larger for high-stress applications |
Vertical Wire Diameter | Φ3.5-Φ4.0mm | ISO 2768 | 3.0-5.0mm | Selection based on bag size |
Surface Treatment | Galvanized, Plastic spray, Silicone spray | ASTM B117 | Custom treatments | Based on corrosion requirements |
Maximum Operating Temp | Carbon Steel: 250°C | ASTM D5587 | 304 SS: 400°C, 316 SS: 450°C | Surface treatment dependent |
Structural Load Capacity | >15,000 Pa | Internal test | Application specific | Tested at maximum operating temp |
Dimensional Tolerance | ±0.5mm | ISO 2768 | Critical for proper fit | Verified with laser measurement |
Service Life | >3 years | Field performance data | 2-5 years | Environment and maintenance |
Product name | Dust catcher bag cage |
Material | Carbon Steel Wire | 304 stainless steel | 316 stainless steel |
Surface treatment process | Galvanized | Plastic spraying | silicone spraying |
vertical steel wires Qty | 8~24line |
Support ring spacing | 150~200mm |
Support ring diameter | φ3.0mm | φ3.2mm | φ3.4mm | φ3.6mm | φ3.8mm | Φ4.0mm |
Vertical steel wire diameter | Φ3.5mm | φ3.8mm | Φ4.0mm |
Cage length can be customized | 400-100000mm |
Venturi tube | With/without |
Why It’s Important to Invest in Quality Dust Collector Cages?
A high-quality filter cage directly impacts the performance of your dust collection system.
· First ting is that a good Prevents filter bag abrasion and collapse during cleaning cycles.
· Secondly is to Ensures optimal airflow and low pressure drop.
· A good cage can Extends the lifespan of filter bags, reducing replacement frequency.
· It Enhances filtration efficiency and compliance with emission standards.
Why We’re Hebei OuTai Environmental Protection Equipment Co., Ltd.(Senotay)
Choosing Senotay means partnering with one of the leading global filter cage manufacturers known for reliability, innovation, and value.
1. in this industry w have Over 15 years of experience in baghouse component manufacturing.
2. Customizable cage designs for all major dust collector models..
3.In-house fabrication, coating, and inspection facilities.
4.our every product is ISO-certified quality control.
5.we have team s for Fast global delivery and technical support.
Senotay provides both standard and custom-engineered dust collector cages which is ensuring perfect compatibility with your existing filtration systems.
Applications of Dust Collector Bag Cage
Dust collector cages are extensively used in high-particle with high-temperature industrial environments where clean air and operational reliability are essential.
Typical Application Areas:
Thermal Power Plants
Cement Kilns and Clinker Coolers
Iron and Steel Factories
Chemical and Petrochemical Processing
Coal Fired Boilers
Non-Ferrous Smelting
Coking and Carbon Black Plants
Foundries and Casting Facilities
FAQs About Dust Collector Filter Cages
Q1: What’s the role of a dust collector cage?
A: It supports the filter bag that is keeping it from collapsing and ensuring proper filtration and airflow within the baghouse system.
Q2: Can Senotay cages fit my existing bags?
A: Obviously Yes, we design cages to fit all major industrial filter bag standards or can customize dimensions as per your system drawings.
Q3: What coating should I choose?
A: For dry environments, use galvanized cages; for corrosive or humid conditions, plastic or organosilicon coatings are recommended.
Q4: How long does a filter cage last?
A: Typically 3–6 years that is always depending on working conditions and coating type.
Q5: How are your products tested?
A: Every cage passes through dimensional accuracy checks, welding inspection and coating thickness tests for consistent quality.
Q6: Do you provide OEM/ODM service?
A: yes we do. Senotay supports custom cage solutions for different baghouse models and dust collector brands.
