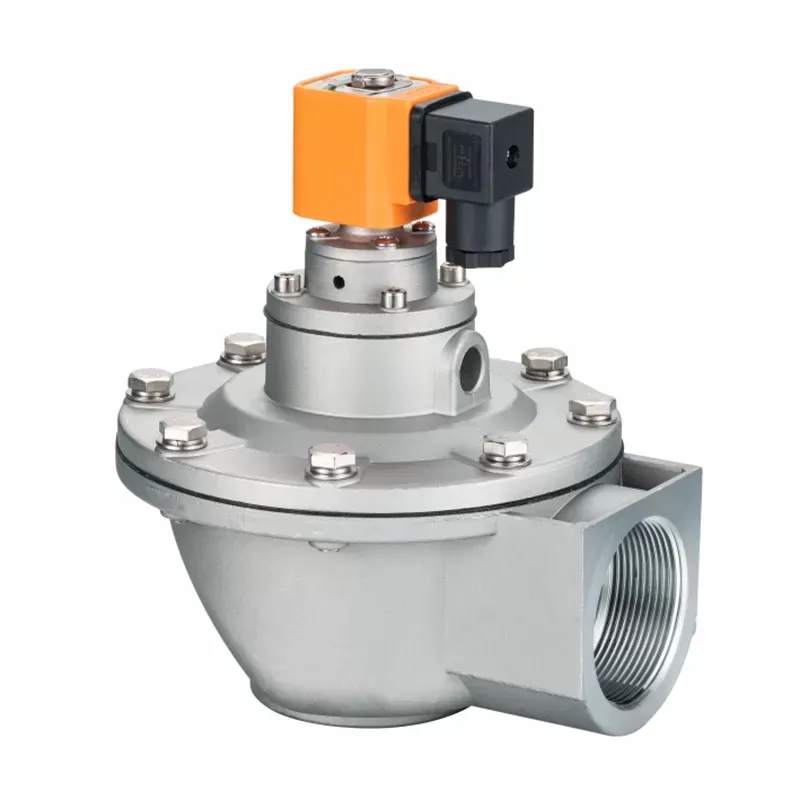

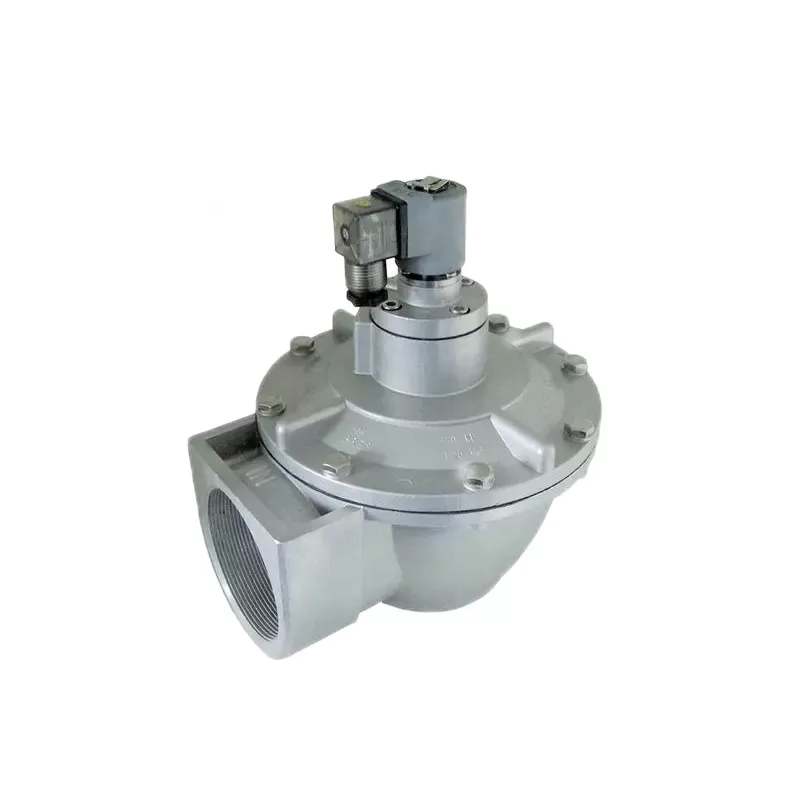

DMF-Z Right Angle Pulse Valve
The SENOTAY DMF-Z is a right-angle solenoid pulse valve engineered with a 90( degree ) angle between the clean air inlet and outlet ports. This specific configuration provides optimal fluid dynamics for pulse jet dust collectors, connecting seamlessly between the compressed air manifold header and the blowpipe. Featuring ultra-fast diaphragm actuation response, the DMF-Z delivers an instantaneous, high-velocity blast of compressed air that clears heavy dust cakes with minimal pressure drop and reduced air consumption.
Technical Performance Matrix
| Specification Component | Industry Standard | SENOTAY DMF-Z Series |
| Response Activation Time | 0.08 seconds | Under 0.03 seconds (Instantaneous response) |
| Working Pressure Range | 0.3 – 0.6 MPa | 0.2 – 0.6 MPa (Highly efficient low-pressure pulsing) |
| Diaphragm Fatigue Life | ~ 1 million cycles | Over 1 million pulses (Premium imported rubber) |
| Body Construction | Recycled aluminum cast | ADC12 Die-Cast Aluminum (High structural pressure integrity) |
Why Leading Plants Choose SENOTAY:
Factory-Direct Pricing. Certified Quality. Dedicated Support.
Best Price Guarantee
Certified & Compliant
Fast, Free Shipping
Comprehensive After-Sales Support
Lifetime Technical Support: Direct engineering access for sizing thread diameters, optimizing sequential pulse controller timing, and calculating air consumption rates.
Full System/Parts Availability: On-demand factory access to all integrated wear components, including replacement dual-diaphragm kits, pilot solenoids, and waterproof din connectors.
Remote Troubleshooting: Immediate assistance for operational diagnostics, including failure-to-close anomalies, continuous bleed leaks, or sluggish coil activation.
Trusted by industrial environmental equipment and air filtration plants worldwide. Read
Why Choose the DMF-Z Right Angle Solenoid Pulse Valve?
Choosing the DMF-Z Pulse Valve guarantees reliability, durability, and precise performance in industrial applications. It is engineered with advanced materials, modern sealing technology, and a low-pressure drop structure to optimize dust cleaning efficiency while reducing energy consumption.
Advantages include:
Stable operation under high temperature and pressure conditions
High blowing efficiency for maximum cleaning power
Fast response time with electromagnetic control
Long service life due to corrosion-resistant materials
Easy installation and low maintenance requirements
Whether you're upgrading an existing dust collector or designing a new pulse-jet system, the DMF-Z valve ensures superior system performance.
DMF-Z Solenoid Pulse Valve Types and Specifications
Model | Connection Size | Inlet Diameter (mm) | Pressure (MPa) | Voltage Options | Material | Air Flow (L/min) |
DMF-Z-20 | G3/4" | 20 | 0.3–0.8 | AC220V / DC24V | Aluminum Alloy | 480 |
DMF-Z-25 | G1" | 25 | 0.3–0.8 | AC220V / DC24V | Stainless Steel | 650 |
DMF-Z-40 | G1½" | 40 | 0.3–0.8 | AC220V / DC24V | Aluminum Alloy | 1200 |
DMF-Z-50 | G2" | 50 | 0.3–0.8 | AC220V / DC24V | Stainless Steel | 1400 |
DMF-Z-62 | 2½" | 62 | 0.3–0.8 | AC220V / DC24V | Cast Aluminum | 2100 |
DMF-Z-76 | 3" | 76 | 0.3–0.8 | AC220V / DC24V | Stainless Steel | 2900 |
DMF-Z-89 | 3½" | 89 | 0.3–0.8 | AC220V / DC24V | Aluminum Alloy | 3600 |
DMF-Z-102 | 4" | 102 | 0.3–0.8 | AC220V / DC24V | Stainless Steel | 4200 |
DMF-Z-114 | 4½" | 114 | 0.3–0.8 | AC220V / DC24V | Aluminum Alloy | 4800 |
DMF-Z-127 | 5" | 127 | 0.3–0.8 | AC220V / DC24V | Stainless Steel | 5500 |
DMF-Z Right Angle Solenoid Pulse Valve — Technical Specification Table
Physical Dimensions | Performance Ratings | Material & Construction | Operational Data | Certifications & Lifecycle |
Valve Length: 115–165 mm | Working Pressure: 0.3–0.8 MPa | ADC12 Aluminum Alloy / SS304 | Coil Voltage: 24V DC / 110V AC / 220V AC | 1–5 million cycles |
Valve Height: 90–160 mm | Peak Pressure: 0.9 MPa | NBR / Viton | Coil Power: 18–30 W | 1–2 years |
Inlet Connection: G1", G1.5", G2" | Pulse Duration: 50–200 ms | SS304 | Ambient Temp: −20°C to +80°C | Up to 300,000 cycles/year |
Outlet Connection: G1", G1.5", G2" | Flow Rate: 80–450 L/min @ 0.6 MPa | SS304 Bolts | Medium Temp: −5°C to +75°C | ISO 9001 / CE |
Flange Size: Ø40–Ø65 mm | Kv Value: 12–28 m³/h | PA66 / Epoxy Encapsulated | Insulation Class: F / H Grade | IEC / RoHS |
Bolt Circle Diameter (BCD): 65–95 mm | Response Time: 15–35 ms | NBR / EPDM | Ingress Protection: IP65 | IP65/IP67 |
Orifice Diameter: 25–62 mm | Air Consumption: 6–30 L/pulse | 1.5–3.0 mm | Weight: 0.45–1.6 kg | 300–600 hours |
Mounting Hole Size: M6–M8 | Leak Rate: < 0.1% @ 0.8 MPa | DIN43650A | Installation Torque: 8–20 Nm | > 1,000,000 |
Product Description, Material Properties & Standard Physical / Mechanical Properties
The DMF-Z Right Angle Solenoid Pulse Valve is typically made from high-quality aluminum alloy or stainless steel, ensuring exceptional strength and corrosion resistance. Its diaphragm, the core component of the valve, is manufactured using specialized fluorine rubber (FKM) or nitrile (NBR), offering excellent elasticity and longevity even under continuous cycles.
Parameter | Specification |
Material | Aluminum Alloy / Stainless Steel |
Coil Voltage | AC220V / DC24V |
Connection Mode | Right-Angle Type (Threaded or Flanged) |
Pressure Range | 0.3–0.8 MPa |
Temperature Range | -20°C to +85°C |
Diaphragm Life | ≥1 Million Cycles |
Response Time | < 0.03 seconds |
Sealing Type | Nitrile Rubber or Fluorine Rubber |
Medium | Clean Compressed Air |
Application | Pulse Jet Bag Filter / Dust Collector Systems |
Features of DMF-Z Right Angle Solenoid Pulse Valve
Compact design with right-angle airflow to minimize resistance.
High-flow and fast-action structure for superior cleaning performance.
Long-life diaphragm with exceptional air-tightness.
Stable operation at extreme temperatures.
Low air consumption with enhanced energy savings.
Simple structure ensuring easy maintenance and installation.

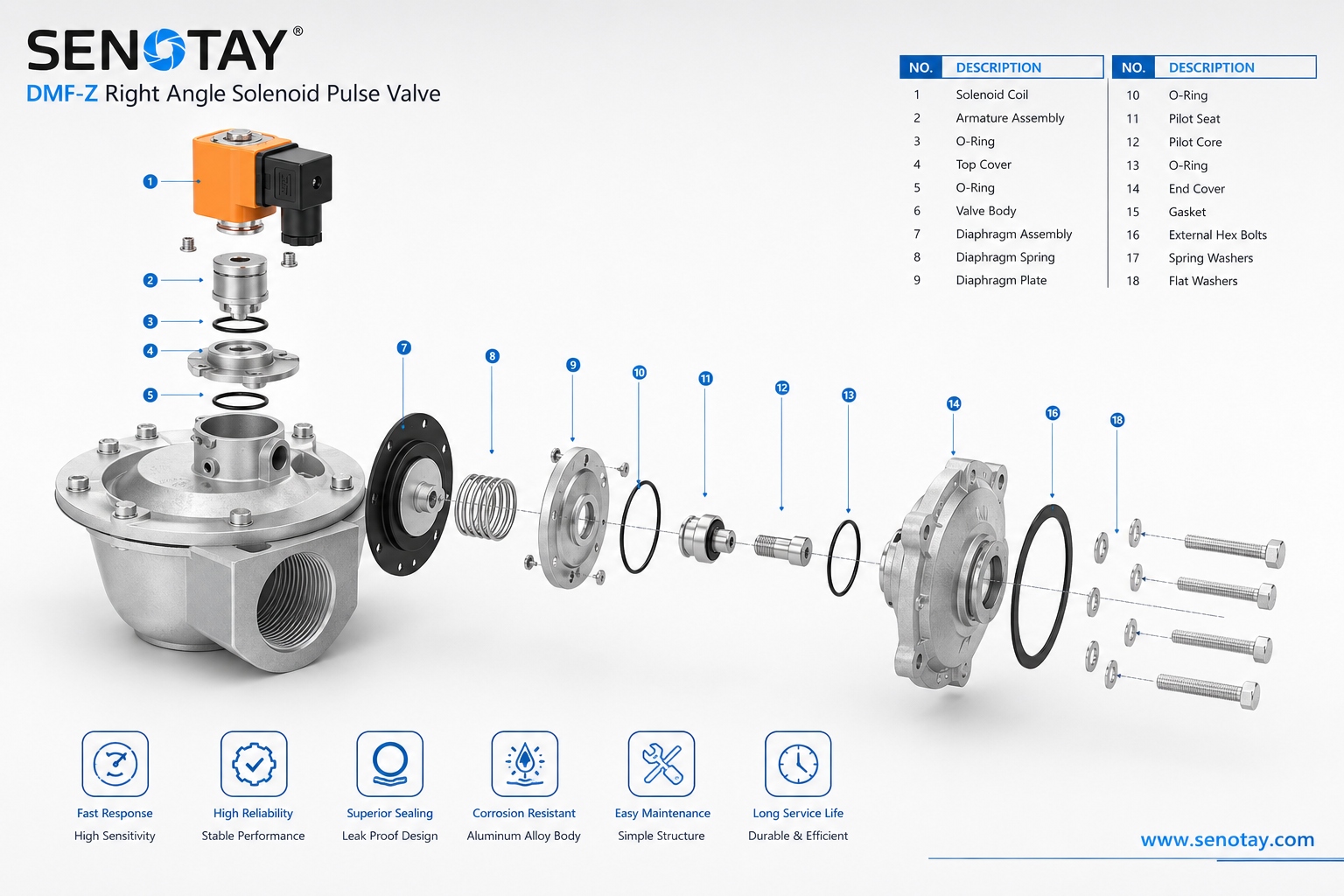

Core Components
Solenoid Coil and Housing – Controls electromagnetic actuation.
Diaphragm Assembly – Ensures precise air release and sealing.
Valve Body – Constructed from lightweight aluminum or stainless steel.
Springs & Fasteners – Maintain structural stability.
Seals and O-rings – Guarantee leak-free operation.
Pilot Valve – Regulates air passage timing.
Installation Method
Positioning: Mount the solenoid pulse valve between the air reservoir and blow tube at a direct right angle.
Connection: Ensure airtight threaded or flanged connections.
Electrical Wiring: Connect the solenoid coil to the control system (AC220V or DC24V).
Testing: Check for air leaks and verify pulse timing.
Maintenance: Periodically clean filters and replace diaphragms after extended cycles.
