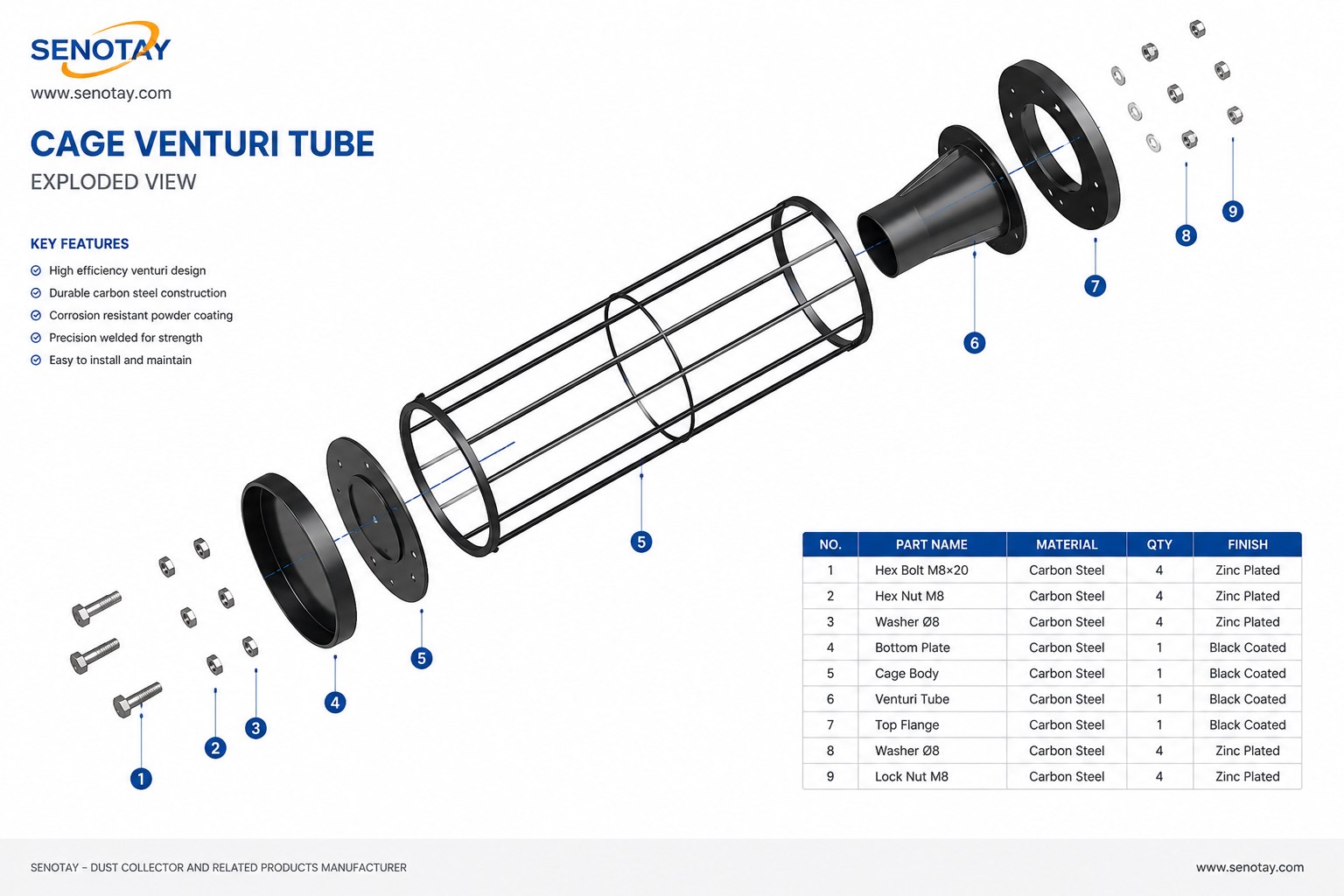

What is a Cage Venturi Tube?
A Cage Venturi Tube is an essential component of dust collector systems designed to enhance the cleaning efficiency and airflow distribution in baghouse filters. Installed on the top of the filter bag cage that is the Venturi tube acts as an accelerator that increases the pulse jet air pressure including ensuring the effective dislodging of dust from the filter surfaces.
Hebei OuTai Environmental Protection Equipment Co., Ltd. manufactures high-quality Cage Venturi Tubes that is engineered for optimal performance and extended service life in industrial dust control systems.
Material Properties of Cage Venturi Tube
· Material Options: Aluminum, stainless steel (SS304 / SS316), carbon steel or engineering-grade plastic (e.g., ABS or FRP).
· Surface Finishing: surface is Polished, galvanized, anodized or epoxy-coated for corrosion resistance.
· Temperature Resistance: Up to 350°C (depending on material and coating).
· Shape Options: Conical, cylindrical or flared types to match specific cage and baghouse designs.
· Corrosion and Chemical Resistance: Excellent performance under acidic or alkaline gas exposure.
· Manufacturing Process: Deep drawing, spinning or precision molding for uniform airflow structure.
Types of Cage Venturi Tube – Technical Analysis
Type No. | Material | Diameter (mm) | Length (mm) | Temperature Resistance (°C) | Surface Finish | Application |
CVT-01 | Carbon Steel | 120 | 150 | 250 | Galvanized | General dust collectors |
CVT-02 | Stainless Steel 304 | 150 | 200 | 400 | Polished | Food & pharma industries |
CVT-03 | Aluminum Alloy | 140 | 180 | 200 | Anodized | Lightweight systems |
CVT-04 | Stainless Steel 316 | 160 | 240 | 420 | Mirror Finish | Chemical processing |
CVT-05 | Galvanized Steel | 130 | 170 | 250 | Zinc Coated | Standard industrial use |
CVT-06 | Plastic (PP) | 100 | 150 | 90 | Smooth molded | Non-metal environments |
CVT-07 | Carbon Steel (Epoxy) | 180 | 250 | 300 | Epoxy-coated | Cement industry |
CVT-08 | Stainless Steel 304 | 200 | 270 | 380 | Brushed | Petrochemical lines |
CVT-09 | Aluminum | 110 | 160 | 180 | Painted | Compact systems |
CVT-10 | Custom Composite | Variable | Variable | 450 | Custom Coating | High-temp applications |
Standard Physical and Mechanical Properties
Property | Specification |
Material | Aluminum / Stainless Steel / FRP / ABS |
Structure Type | Conical or Cylindrical |
Length | 120–250 mm (custom available) |
Wall Thickness | 1.0–3.0 mm |
Surface Finish | Polished / Coated |
Temperature Resistance | Up to 350°C |
Pressure Endurance | ≥1.5 MPa |
Corrosion Resistance | Excellent |
Compatibility | All standard filter cages |
Weight Tolerance | ±3% |
What Are the Advantages of Cage Venturi Tube?
Advantage | Description |
Compact Structure | Easy integration with existing cage assemblies |
Energy-Efficient | Reduces compressed air consumption |
Improved Filtration | Enhances pulse cleaning effectiveness |
Long Service Life | Durable materials extend operational lifespan |
Cost-Effective | Low maintenance and easy replacement |
High Compatibility | Works with different dust collector models |
Customizable | Available in multiple diameters, lengths, and coatings |
Technical Specifications: Cage Venturi Tube Model CVT-ST-38
Parameter | Specification | Tolerance | Standard | Notes |
Venturi Throat Diameter | 38 mm | ±0.1 mm | ISO 2531 | Critical for airflow optimization |
Base Flange Outer Diameter | 110 mm | ±0.5 mm | ISO 5256 | Ensures perfect tube sheet fit |
Total Venturi Lift Height | 95 mm | ±1.0 mm | DIN 1952 | Maximizes pulse cleaning efficiency |
Recommended Operating Pressure | 70 - 110 psi | ±5% | ASME B40.2 | For optimal bag cleaning performance |
Primary Construction Material | Carbon Steel AISI 1010 | - | ASTM A29 | Balanced strength and cost |
Surface Finish | Zinc Plated | 12μm min | ISO 2081 | Superior corrosion resistance |
Airflow Induction Ratio | 30% increase | ±2% | Internal testing | Compared to standard venturis |
Operating Temperature Range | -20°C to 180°C | - | ISO 3506 | Suitable for most dust collection |
Pressure Drop Coefficient | 0.92 K value | ±0.02 | ISO 5801 | Minimal system impact |
Compatible Bag Cage OD | 115-125 mm | - | Custom fit | Designed for standard cages |
Why Our Cage Venturi Tube is Unique Compared to Other Bag Cage Components
The Cage Venturi Tube plays a unique role by controlling airflow velocity and pressure during cleaning, ensuring every part of the filter bag receives uniform air impact.
This makes it more effective than standard open-top cage designs, as it:
· Improves cleaning intensity without increasing air consumption.
· Reduces pressure loss across the filter media.
· Prevents dust re-deposition on cleaned bags.
· Increases the lifespan of both bags and cages.
Why It’s Important to Have a Cage Venturi Tube in Your Industry
A Cage Venturi Tube is vital for any dust collection or air filtration system because it optimizes dust removal efficiency and reduces operational expenses. Without a Venturi tube:
In industries requiring clean and consistent airflow, Cage Venturi Tubes are not optional—they are essential.
Industries Using Cage Venturi Tube
Cement and Building Materials.
Steel and Metal Processing.
Power Plants and Energy Sector.
Chemical and Petrochemical.
Foundries and Casting Plants.
Food & Pharmaceutical.
Paint, Coating, and Powder Processing.
Mining and Mineral Handling.
Waste Management and Recycling.
Textile and Paper Manufacturing.
Why Choose Hebei OuTai Environmental Protection Equipment Co., Ltd?
Hebei OuTai (Senotay) stands as a trusted manufacturer and global supplier of industrial dust filter bags.
Our Competitive Edge:
We have Over 15 years experience in environmental air filtration systems.
State-of-the-art facility with international QC complianc.
We can have Custom-made designs to fit all major baghouse systems.
Quality certification: We are ISO 9001:2015 certified.
Global Service Reach – We have Fast response, installation guidance and export logistics
Senotay’s commitment to quality ensures that every Acrylic filter bag performs efficiently in the world’s toughest environments.To save the environment is our main goal.
FAQs About Cage Venturi Tube
Q1: What is the main function of a Cage Venturi Tube?
A: It enhances cleaning efficiency by converting compressed air pulses into high-velocity jets that remove accumulated dust from filter bags.
Q2: Can the Cage Venturi Tube be customized?
A: Yes it can be, Hebei OuTai offers OEM and ODM customization for material, length, diameter, and surface treatment.
Q3: What maintenance does it require?
A: Minimal maintenance; periodic inspection for dust buildup or corrosion ensures long lifespan.
Q4: Is it compatible with all dust collector designs?
A: Yes, we manufacture Cage Venturi Tubes compatible with various baghouse cages and international dust collection systems.
Q5: How can I order or get a quotation?
A: Contact us at info@senotay.com or call +86-158-318-71808 for expert consultation and complete product support.
