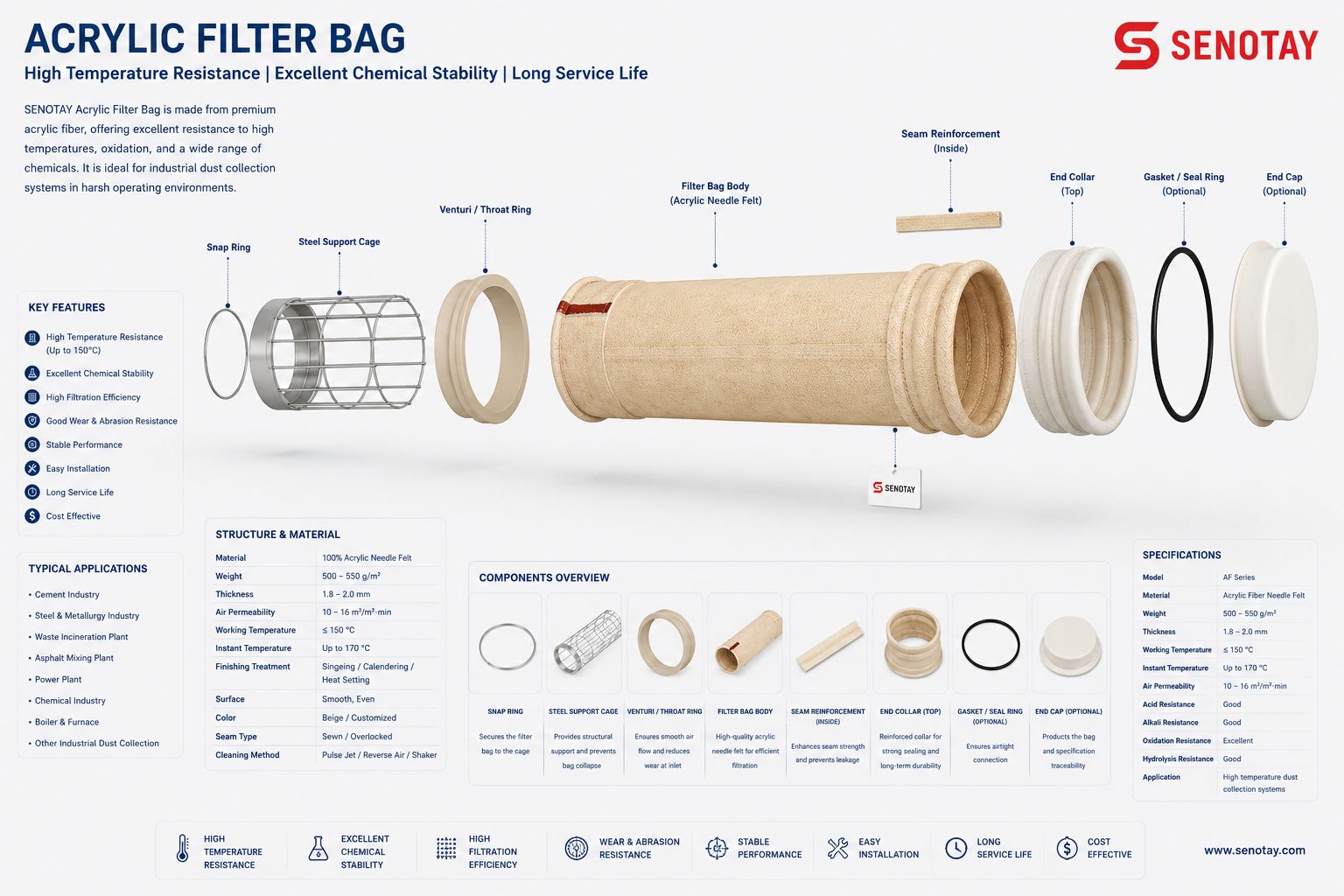

Hydrolysis-Resistant, Medium-Temperature Dust Collector Media
The Acrylic Filter Bag (AFB Series) is an industrial dust filtration media manufactured from homopolymer polyacrylonitrile fiber. Positioned perfectly for medium-temperature applications (operating continuously at 125°C to 140°C), its defining advantage is its exceptional resistance to hydrolysis. Where standard polyester bags rapidly degrade in humid, moisture-heavy exhaust, acrylic fibers maintain their tensile strength and dimensional stability. This makes the AFB Series the most cost-effective choice for asphalt mixing plants, fertilizer production, and waste incineration facilities where the exhaust carries both moisture and mild acidity.
Featured Model Configurations
AFB-200 | Cement & Milling Bag
Airflow Permeability: 50 L/m²/s | Surface Treatment: Waterproof
The standard choice for cement industry applications where exhaust streams contain moderate moisture that would clump on untreated bags.
AFB-700 | Fertilizer Plant Exhaust
Airflow Permeability: 45 L/m²/s | Surface Treatment: Anti-Static
Designed with anti-static properties to safely handle the explosive dust risks sometimes present in agricultural and fertilizer milling.
Key Technical Specifications
500±10 g/m² homopolymer polyacrylonitrile needle felt with a thickness of 1.8–1.9 mm. Thermally stabilized to keep shrinkage below 2% at 135°C.High tensile strength (Warp >1200 N, Weft >1400 N) ensures the bag withstands heavy dust loads and aggressive pulse-jet cleaning cycles. Achieves up to 99% filtration efficiency with an air permeability tuned between 40 and 70 L/m²/s (@200Pa), depending on the specific model and surface treatment.
Why choosing Acrylic Filter Bag?
Superior Hydrolysis & Moisture Resistance: Made from homopolymer polyacrylonitrile fibers, preventing structural breakdown and dust blinding in high-humidity gas streams where polyester quickly degrades.
Cost-Effective Mid-Temp Solution: Delivers reliable thermal performance up to 140°C continuous (160°C peak), filling the gap between low-temp polyester (110°C ceiling) and Nomex without paying a premium for meta-aramid media.
Acid & Alkali Protection: Specialized chemical surface treatments (waterproof, oil-repellent, acid-proof) resist chemical attack from mild acidic vapors in fertilizer, cement, and chemical plants.
High Mechanical Durability: High tensile strength (>1200 N vertical, >1400 N weft) combined with low thermal shrinkage (<2%) ensures long bag life under continuous pulse-jet cleaning cycles.
Balanced Airflow & Efficiency: Achieves up to 99% filtration efficiency while maintaining steady air permeability (40–70 L/m²/s) to keep pressure drop low and minimize fan energy consumption.
Why Leading Plants Choose SENOTAY Acrylic Filter Bag
Factory-Direct Pricing. Certified Quality. Dedicated Support.
Best Price Guarantee
Certified & Compliant
Fast, Reliable Delivery
Comprehensive After-Sales Support
Lifetime Technical Support: Expert guidance on bag sizing, air-to-cloth ratios, and gas chemistry compatibility.
Full System/Parts Availability: Direct access to matching structural components, including heavy-duty filter cages and venturis.
Remote Troubleshooting: Rapid diagnostic assistance for field issues like premature blinding or pressure drop fluctuations.
Trusted by industrial environmental equipment and air filtration plants worldwide. Ready for yours.
Types of Acrylic Filter Bags - We offer
Type No. | Air Permeability (L/m²/s) | Working Temp (°C) | Surface Treatment | Application Industry |
AFB-100 | 40 | 120 | Singed | Food Processing |
AFB-200 | 50 | 130 | Waterproof | Cement Industry |
AFB-300 | 55 | 140 | Acid-Proof | Chemical Plants |
AFB-400 | 60 | 160 | Oil-Repellent | Petrochemical |
AFB-500 | 68 | 140 | PTFE Coated | Pharmaceutical |
AFB-600 | 70 | 150 | Glazed Finish | Dust Collection Systems |
AFB-700 | 45 | 130 | Anti-static | Fertilizer Plants |
AFB-800 | 50 | 140 | Waterproof & Anti-aging | Power Industry |
AFB-900 | 60 | 150 | Acid-Resistant | Foundry Industry |
AFB-1000 | 65 | 160 | Dual Layer Coated | Waste Gas Filtration |
Detailed Product Specifications Table
Specification Parameter | Standard Value | Test Method | Premium Grade | Economy Grade |
Continuous Operating Temperature | ≤140°C | ISO | 140°C | 125°C |
Maximum Peak Temperature | 150°C | ISO | 160°C | 140°C |
Fabric Weight Tolerance | ±5% | ISO 9092 | ±3% | ±7% |
Thickness Tolerance | ±0.15mm | ISO 9073-2 | ±0.10mm | ±0.20mm |
Air Permeability Range | 15±25% m³/m²/min | ISO 9237 | 12-18 m³/m²/min | 10-20 m³/m²/min |
Breaking Strength - Warp | >800 N/5×20cm | ISO 13934-1 | >1000 N/5×20cm | >600 N/5×20cm |
Breaking Strength - Weft | >1200 N/5×20cm | ISO 13934-1 | >1400 N/5×20cm | >1000 N/5×20cm |
Elongation at Break - Warp | 20-35% | ISO 13934-1 | 25-35% | 20-40% |
Elongation at Break - Weft | 25-45% | ISO 13934-1 | 30-45% | 25-50% |
Thermal Shrinkage @135°C | <2% | Internal Method | <1% | <3% |
Specification of Acrylic Filter Bag
product name: | Acrylic filter bag |
Fiber Type | Homopolymer Polyacrylonitrile |
Weight (g/ ㎡ ) | 500± 10 |
Thickness(mm) | 1.8-1.9 |
Tensile strength (N/5×20cm) | vertical | >1200 |
Weft | >1400 |
Air permeability (L/m2/s·200pa) | 40-70 |
Recommended operating temperature (℃) | <140 |
Instantaneous operating temperature (℃) | 160 |
Surface treatment process | Waterproof, oil-proof, acid-proof, |
Technical Advantages in Manufacturing Acrylic Filter Bags at Senotay
At Senotay, we integrate cutting-edge material engineering and precision manufacturing to create highly reliable Acrylic dust collector filter bags.
Senotay Manufacturing Advantages:
Advanced Needle Punching Technology ensures uniform fiber distribution for optimal air permeability.
Surface Finishing Techniques (PTFE coating, waterproofing, and anti-oil treatment) enhance particle release and prevent clogging.
ISO 9001:2015 Certified Production Facility guaranteeing strict quality control.
Custom Engineering & Sizing tailored to specific baghouse models and air systems.
Thermal Stabilization Process prevents shrinkage and deformation during long-term heat exposure.
With these technical advantages, Senotay’s Acrylic filter bags ensure consistent performance, longer filter cycles, and lower operating costs.
The Product Advantages:
With its excellent performance characteristics, acrylic filter bag has the following advantages in the filter material market:
High-efficiency filtration: it can effectively remove tiny particles and harmful substances in gas or liquid.
Durability: high strength and toughness, long service life.
Economy: lower energy consumption and maintenance costs, saving time and money for users.
Widely used: applicable to many industries and fields to meet different filtration needs.
Maintenance and Longevity
Maintenance Tips:
Kindly Use dry compressed air for periodic cleaning.
Please Keep dust collectors free from moisture accumulation.
Please Monitor pressure drop and replace filters when efficiency drops.
Keep Store spare bags in cool & dry spaces to prevent aging.
▪ Dust Filter Bag
▪ Polyester Filter Bag | FMS Filter Bag | Basalt Filter Bag | Nomex Filter Bag |
PTFE Filter Bag | Acrylic Filter Bag | Fiberglass Filter Bag | P84 Filter Bag | PPS Filter Bag
▪ Dust Collector Bag Cage
▪ Dust Collector Bag Cage | Galvanized Bag Cage | Silicone Bag Cage | Trapezoidal Bag Cage | Envelope Bag Cage | Cage Venturi Tube
▪ Dust filter element
▪ Air Filter Element | Top-mounted Dust Filter Element | Oblique-insert Dust Filter Element |
Lifting Dust Filter Element | Six-Ear Quick-release Dust Filter Element | Threaded Dust Filter Element | Flange Dust Filter Element
▪ Electromagnetic pulse valve
▪ DMF-Z Right Angle Solenoid Pulse Valve | DMF-Y Submerged Electromagnetic Pulse Valve
▪ Industrial Electric Precipitation Accessories
▪ Cathode Wire | Dust Collecting Plate | Vibrating Hammer | Bearing In Dust | Electrostatic Precipitator Porcelain Sleeve
Acrylic Filter Bag — Frequently Asked Questions (FAQ)
Q1: What is an Acrylic filter bag used for?
Answer:Acrylic filter bags are basically used for medium-temperature or kind of low temperature dust filtration. industries like cement, waste incineration, chemical production and food processing where resistance to moisture and acidic gases is essential.
Q2: What is the temperature limit of an Acrylic filter bag?
Answer:Acrylic filter bags can continuously operate up to 125°C and withstand peak temperatures up to 140°C that is maintaining filtration efficiency and durability.
Q3: How long does an Acrylic filter bag last?
Answer:With proper maintenance an Acrylic filter bag typically lasts 1.5 to 3 years though it is depending on operating conditions, cleaning frequency and dust type.
