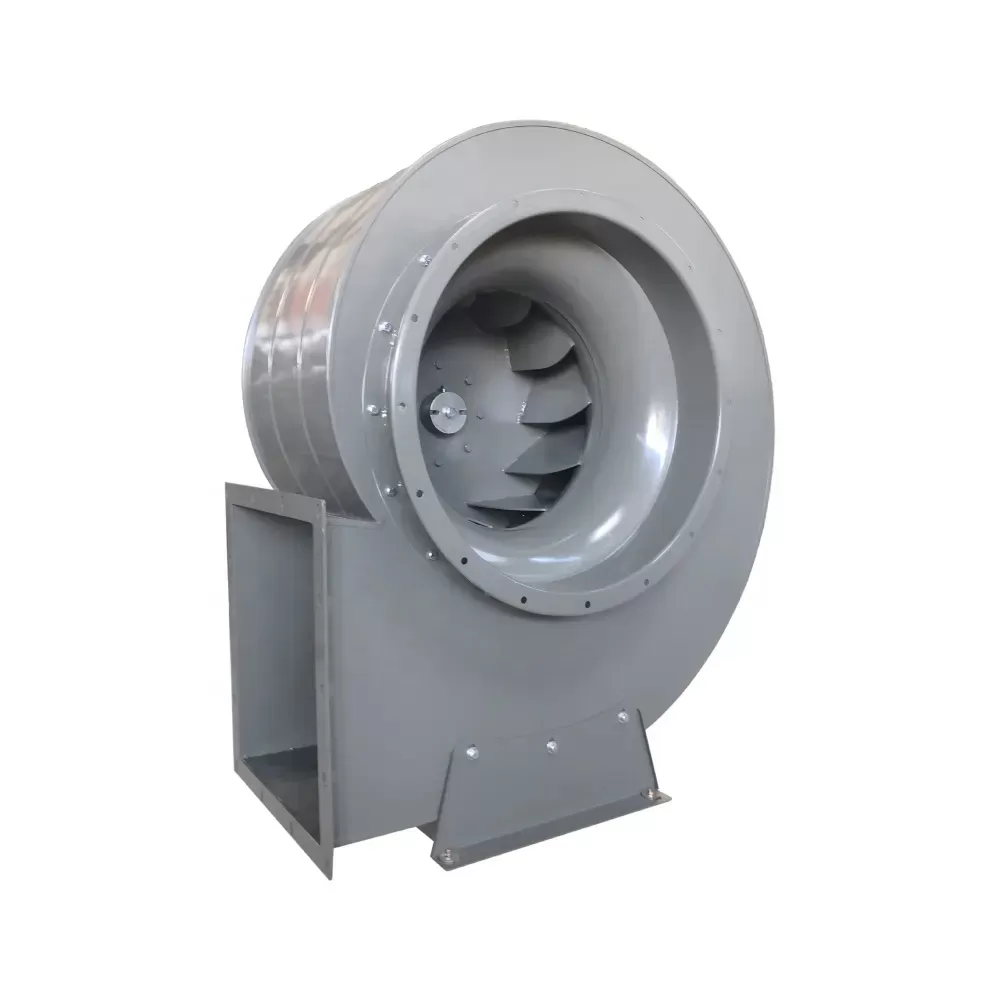

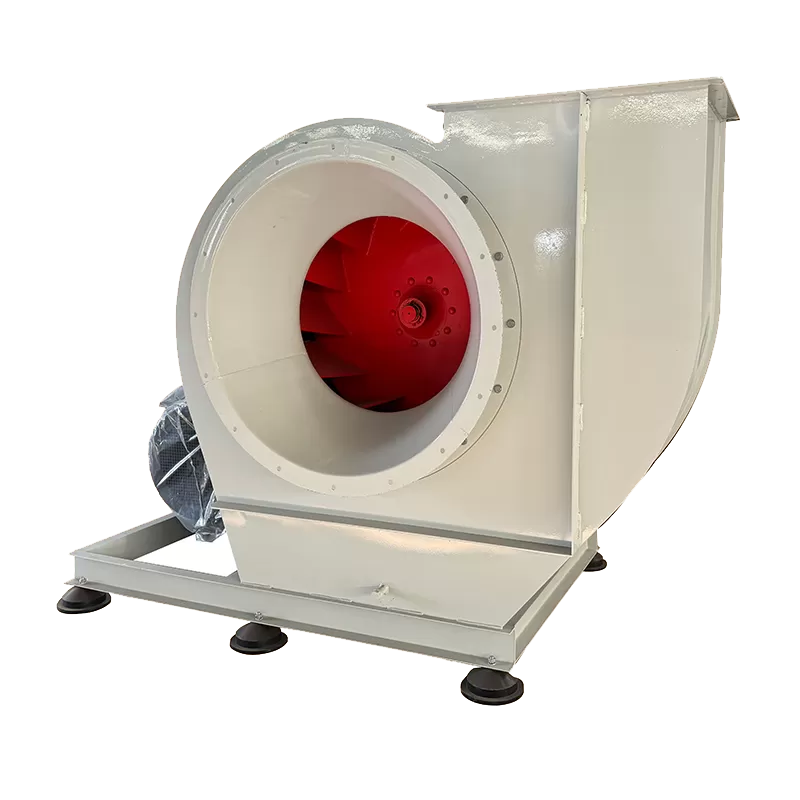

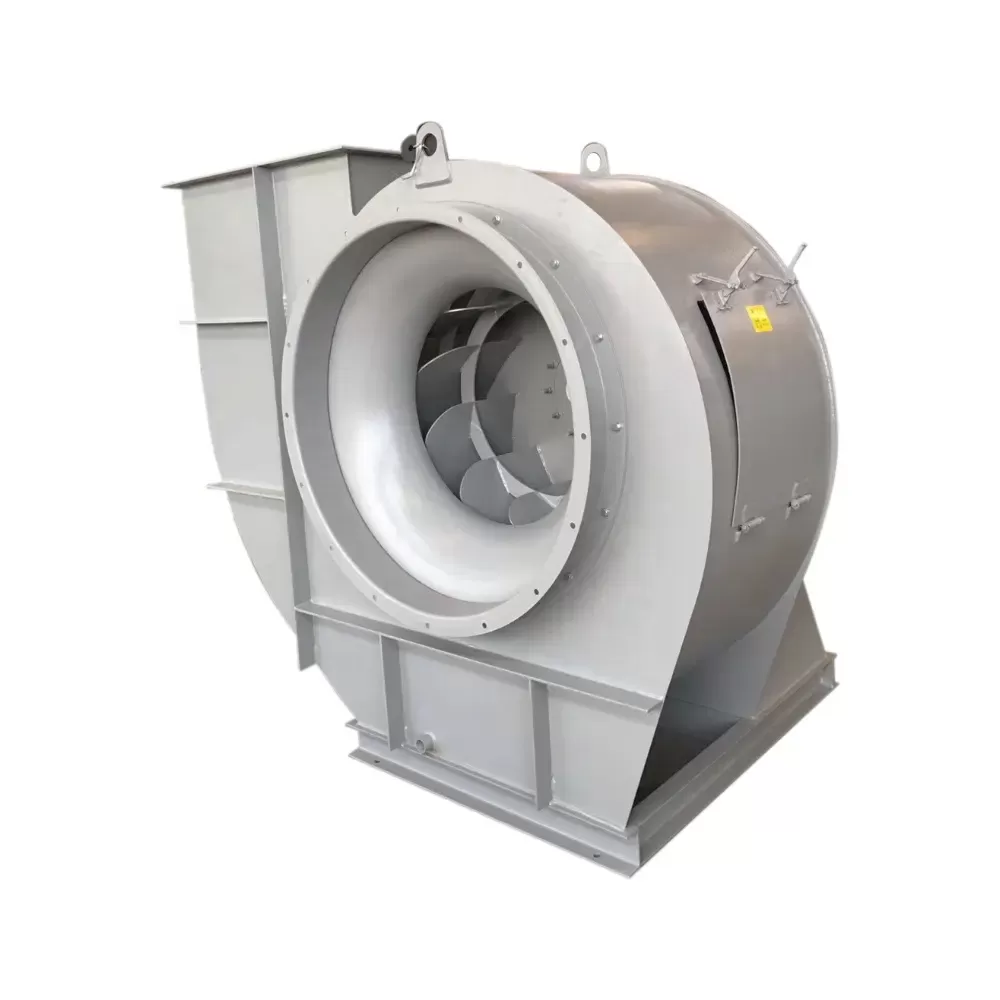

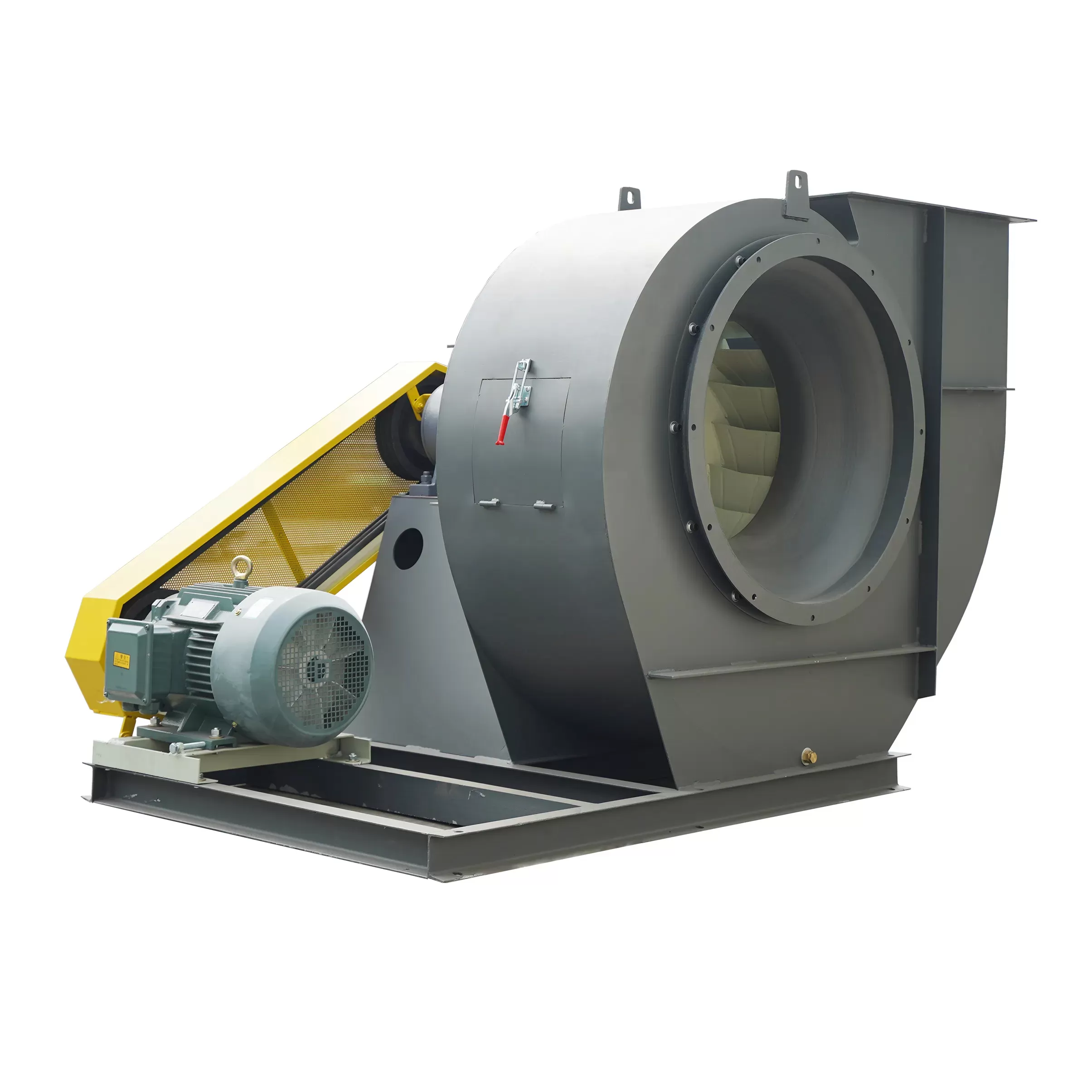

What is the 9-26 Industrial Blower?
The 9-26 Industrial Blower is a high-pressure centrifugal fan designed for industrial air handling, ventilation, and exhaust applications. It’s engineered for demanding conditions where both air volume and elevated pressure are required. As a product of an experienced blower manufacturer, the 9-26 series delivers reliable performance across many sectors.
The 9-26 Industrial Blower is a high-pressure, single-suction centrifugal fan engineered to overcome severe system resistance in industrial ventilation, pneumatic conveying, and heavy-duty exhaust applications. Unlike standard high-volume ventilation fans, the 9-26 series features a specialized impeller and volute casing designed to generate extreme static pressure—reaching up to 16,000 Pa in its largest configurations. It reliably moves clean or non-corrosive gases at temperatures up to 80°C, making it the primary choice for deep boiler systems, long duct runs, and dense material beds where standard blowers would stall.
Extreme Static Pressure: Built specifically to overcome high resistance in complex ductwork and material conveying systems, generating pressures far beyond standard 4-72 or 4-68 ventilation blowers.
Aerodynamic Impeller Design: Precision-processed and dynamically balanced impellers (available in forward-curved, radial, or combination profiles) ensure smooth gas acceleration with minimal vibration and low acoustic noise.
Versatile Material Options: Standard construction utilizes high-strength Q355B carbon steel, with optional stainless steel or specialized anti-corrosive coatings available for harsh chemical environments.
9-26-7.1D | Industrial Boiler Draft Fan
Airflow: 12,292–19,360 m³/h | Total Pressure: 12,427–10,635 Pa | Motor Power: 200.0–210.0 kW
Ideal for continuous boiler draft systems, medium-scale pneumatic transfer, and furnace exhaust.
9-26-14D | Mega-Flow High-Pressure Blower
Airflow: 47,121–82,463 m³/h | Total Pressure: 12,285–10,096 Pa | Motor Power: 410.0–447.0 kW
High-capacity system built for utility-scale power plants, large cement kilns, and central industrial exhaust.
Extreme High-Pressure Performance: Capable of generating up to 16,000 Pascals of total pressure, specifically built to overcome immense system resistance that standard ventilation blowers cannot handle.
Massive Air Volume Capacity: Despite its high-pressure focus, it still moves large volumes of air, ranging from 1,000 to an impressive 123,000 m³/h, depending on the model.
Heavy-Duty Applications: Ideal for demanding environments like boiler systems, industrial exhaust lines, and pneumatic conveying networks with long duct runs and material beds.
Versatile Material Options: Standard carbon steel construction, with optional stainless steel or coated variants to resist severe corrosion or high-temperature wear.
Certified & Customizable: ISO 9001 and CE certified, offering adjustable parameters (impeller angle, speed) and multiple drive types to perfectly match your system's flow and pressure requirements.
Material & Construction Options
Standard casing in carbon steel; optional stainless steel or coated variants available for corrosive or harsh environments. Impellers may be forward-curved, radial, or combination types depending on performance needs. This product description reflects Expertise in industrial blower classification and Experience in standard industrial blower ranges.
Outstanding high-pressure performance: It can generate high wind pressure and is suitable for occasions where it is necessary to overcome the resistance of considerable wind pressure, such as ventilation, smoke exhaust, pneumatic conveying, etc. It can effectively enhance the gas pressure and flow.
Centrifugal structure: gas flows along the impeller's rotating direction with higher efficiency and better gas conveying capacity.
Compact structure: relatively small volume, easy to install and arrange in limited space.
Stable operation: the impeller is precisely processed and balanced, with low vibration and noise during operation.
Variety of materials: Suitable materials, such as carbon steel, stainless steel, etc., can be selected according to different use environments and medium requirements to meet the unique needs of corrosion and high-temperature resistance.
Adjustability: Some products may allow you to adjust the impeller angle, speed, and other parameters to optimize and adjust performance under different working conditions.
Factory-Direct Pricing. Certified Quality. Dedicated Support.
Best Price Guarantee
Certified & Compliant
ISO 9001 and CE certified.
Fast, Reliable Delivery
.
Parameter | Specification Value | Tolerance | Compliance Standard | Test Method |
Model Number | 9-26-14D | — | — | ISO 1328-1 |
Reduction Ratio | 1:1.85 | ±1.0% | ISO 6336 | ISO 18653-1 |
Input Power (kW/HP) | 410.0 kW / 550 HP | ±2.0% | IEC 60034-1 | IEC 60034-2-1 |
Input Speed (RPM) | 1,450 | ±4 RPM | ISO 13752 | ISO 19223 |
Output Torque (Nm) | 2,706 | ±3.0% | DIN 3996 | DIN 51505 |
Efficiency (%) | 91.1 | ±0.7% | ISO 12756 | ISO 14857 |
Backlash (arcmin) | 2.3 | ≤2.5 arcmin | ISO 6336-7 Class 5 | ISO 1328-2 |
Housing Material | High-strength wear-resistant steel (Q355B) | — | EN 10025-6 | ISO 6506-1 |
Gear Material | Nitrocarburized alloy steel (34CrAlNi7) | — | ISO 6336-7 Class 10.9 | ASTM E10 |
Lubrication Type | Synthetic oil (ISO VG 1000) | — | ISO 8068 | ASTM D445 |
Sealing Type | Septuple-labyrinth + dual mechanical face seals | — | IP69K | ISO 10685-1 |
Mounting Configuration | Flange-mounted (ISO 5211) | — | ISO 2177 | ISO 5211-3 |
Shaft Configuration | Solid carbon steel (40CrNiMo7) | ±0.008 mm | ISO 4401 | ISO 286-2 |
Cooling Method | Triple-circuit forced liquid cooling | — | ISO 12953 | ISO 3408-3 |
Operating Temp. Range | -50°C to +500°C (-58°F to +932°F) | — | ISO 3457 | ISO 10218-1 |
Noise Level (dB) | 68 dB(A) | ±0.6 dB | ISO 11201 | ISO 3744 |
Vibration Standards | ISO 10816-3 Class S0 | ≤1.0 mm/s | ISO 10816-3 | ISO 10816-1 |
Weight | 3,650 kg (8,047 lbs) | ±12 kg | ISO 1995 | ISO 5349-1 |
Dimensions (LxWxH) | 3,250 x 2,050 x 2,350 mm (128.0 x 80.7 x 92.5 in) | ±0.8 mm | ISO 2768-mK | ISO 2768-1 |
Protection Class | IP69K | — | IEC 60529 | IEC 60529-2 |
Certifications | ISO 9001:2015, CE Marking | — | — | ISO/IEC 17025 |
Warranty & Service Life | 5 years / 40,000 operating hours | — | — | ISO 13818 |
Customization Options | Special shaft coatings, ultra-high-temperature bearings, duplex stainless steel construction | — | — | ISO 15744 |
| (No.) | (r/min) | (Kw-p) | (m3/h) | (Pa) |
| 9-26-4C | 2900 | 5.5-2 | 2198-3215 | 3852-3407 |
| 9-26-4.5C | 2900 | 11-2 | 3130-4792 | 4910-4256 |
| 9-26-5C | 2900 | 18.5-2 | 4293-6762 | 6035-5180 |
| 9-26-5.6C | 2900 | 30-2 | 6032-9500 | 7616-6527 |
| 9-26-6.3C | 2900 | 55-2 | 8588-13525 | 9698-8310 |
| 9-26-7.1D | 2900 | 2010-2 | 12292-19360 | 12427-10635 |
| 9-26-8D | 2900 | 200-2 | 17584-27696 | 15955-13634 |
| 1450 | 30-2 | 8792-13848 | 3834-3294 | |
| 9-26-9D | 1450 | 45-4 | 12518-19717 | 4869-4181 |
| 9-26-10D | 1450 | 75-4 | 17172-30052 | 6143-5056 |
| 9-26-11.2D | 1450 | 2032-4 | 24126-42221 | 7747-6382 |
| 960 | 37-6 | 15973-27953 | 3346-2763 | |
| 9-26-12.5D | 1450 | 250-4 | 33540-58695 | 9713-7993 |
| 960 | 75-6 | 22206-38860 | 4179-3450 | |
| 9-26-14D | 1450 | 410-4 | 47121-82463 | 12285-10096 |
| 960 | 2010-6 | 31197-54596 | 5262-4341 | |
| 9-26-16D | 1450 | 850-4 | 70339-123090 | 16250-13324 |
| 960 | 220-6 | 46569-81496 | 6911-5696 |
Here is a sample performance table based on manufacturer data (to be replaced with your exact numbers):
Model / Variant | Speed (rpm) | Airflow (m³/h) | Total Pressure (Pa) | Motor Power (kW) | Notes |
3.15A @ 2,900 rpm | — | 1,073 – 1,321 | 2,388 – 8,284 | 1.5 – 2 kW | Entry-level model |
5A variant | — | 4,293 – 6,349 | 6,035 – 5,381 | ~20 HP / 15 kW | Mid-top performance |
Larger variant | lower rpm | up to ~14,000 m³/h | pressures in several thousands Pa | up to ~55 kW | High capacity model |
· High Pressure Capability: The 9-26 blower is built to handle challenging pressure demands, suitable for use as a boiler induced draft fan or in systems with significant resistance.
· Wide Performance Flexibility: With multiple motor and impeller options, the blower can be optimized for different flow/pressure points — giving designers flexibility in matching system demands.
· Durable & Reliable Design: Sturdy materials, balanced impellers, and robust bearings ensure long service life even under heavy duty operation.
· Quiet & Efficient Operation: Aerodynamic optimization reduces noise and maximizes internal efficiency, reducing energy consumption.
· Certified Manufacturing: Produced under ISO 9001 quality management (common in blower industry) and possibly CE certification (vendor-specific) — supporting Authority and Trustworthiness.
· Ease of Maintenance: Modular construction, accessible inspection covers, and standard parts simplify servicing and minimizing downtime.
These features articulate benefits clearly for prospective users and strengthen trust through credible manufacturing claims.
· Working Principle: Air (or gas) enters axially into the impeller, is accelerated outward by centrifugal force, and then guided by the volute or scroll casing into the outlet. The conversion of velocity into pressure enables the blower to drive air through ductwork, filters, or process resistance.

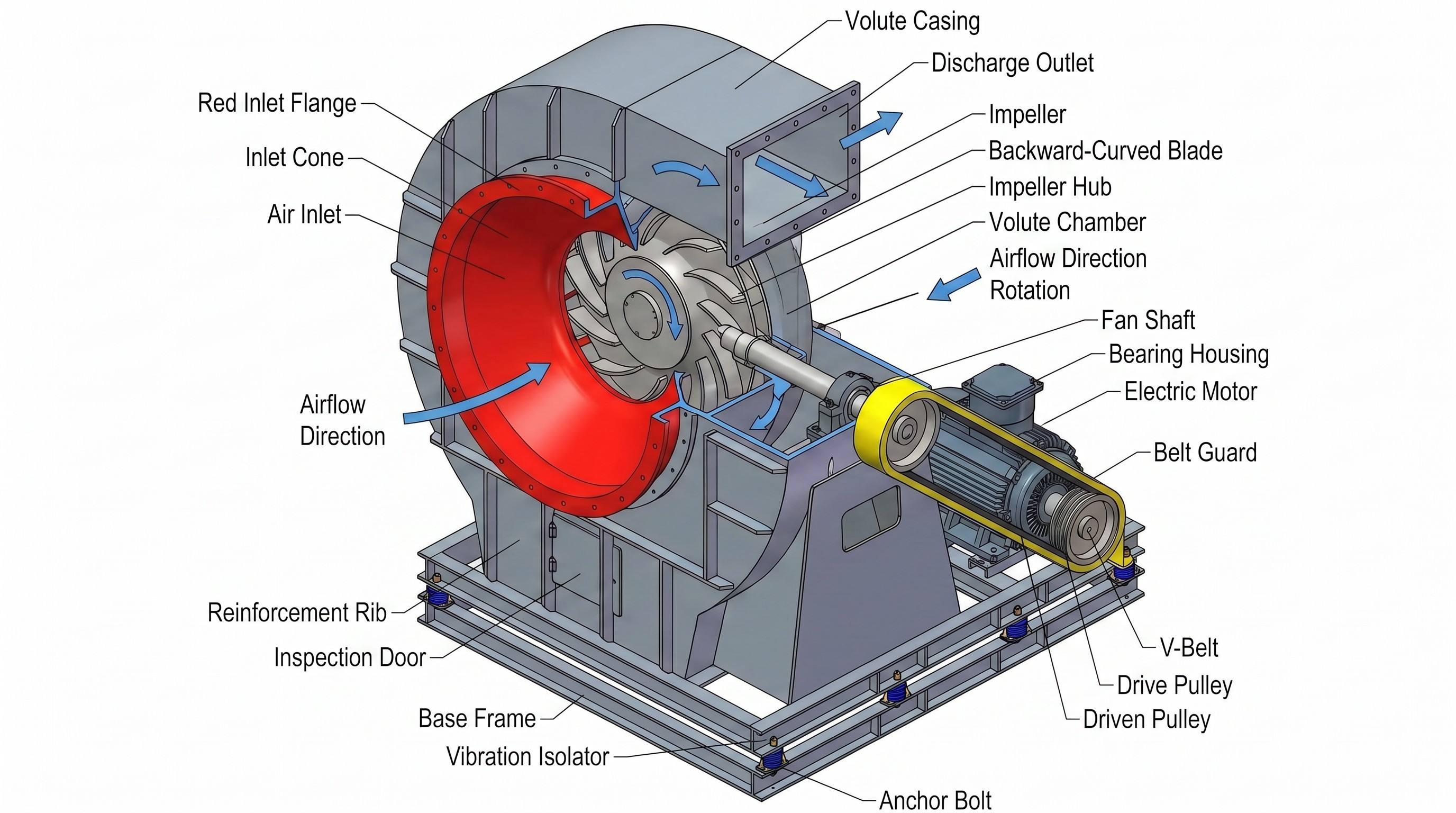

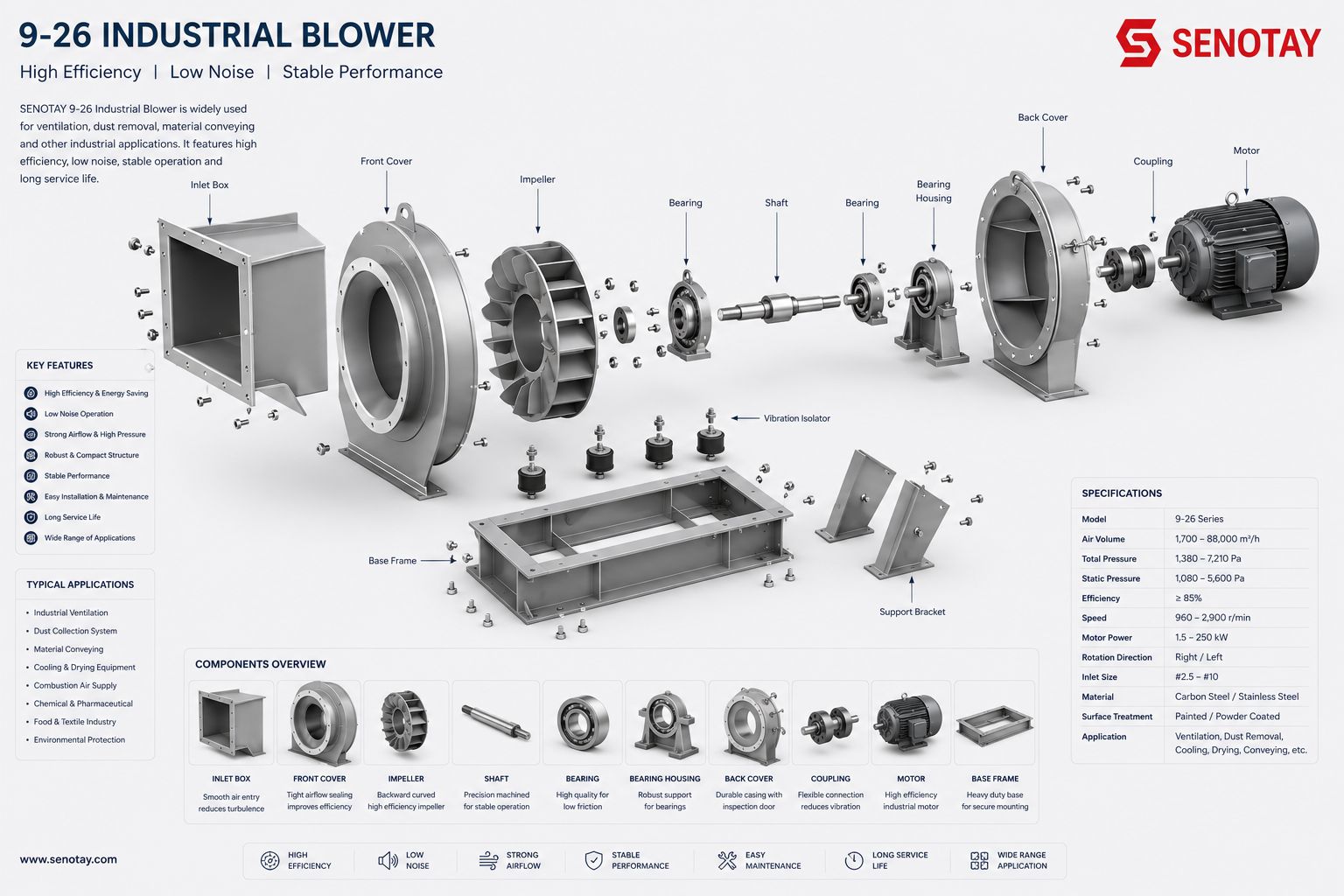

· Structure / Components:
o Impeller / Fan Wheel — blades (forward or radial) balanced for high-speed rotation
o Casing / Scroll / Volute — collects and directs airflow, converting kinetic energy to pressure
o Motor & Drive Assembly — direct, belt, or coupling arrangements for torque transfer
o Shaft, Bearings & Seals — support rotor loads and minimize leakage
o Inlet / Outlet Flanges / Connections — integrate with ducting systems
o Frame & Mounting Base — supports the blower, ensures alignment, mitigates vibration
This breakdown demonstrates Expertise in mechanical design and airflow engineering.
